Specifications:

• Dry Type Transformer, 250 KVA, 3 PH, 60 Hz, P/N MG-80
• Primary: 380 VAC L-L, Delta
• Primary taps: 2-2.5% FCAN and 4-2.5% FCBN
• Secondary: 460 VAC L-L, Wye, 266 VAC L-N
• Aluminum windings
• Approvals: CSA / UL listed
• K-Factor: K-1
• Outdoor enclosure with rain hood: 51.50″H x 40.50″W x 35.50″D
• Reliability is extremely high as there are no moving parts
• Aluminum winding and Copper winding are both considered good construction
• Temperature rise shall be 80° C above the ambient. Insulation is rated for 150° C
• Estimated weight: 1585 lbs.

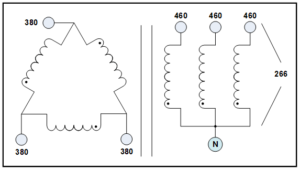

The schematic diagram is shown below:

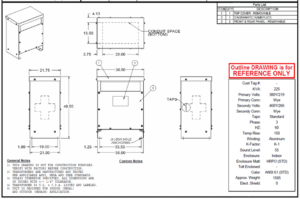

Details of the enclosure are shown below:





The photo of the enclosure is shown below:
