DRY TYPE ISOLATION TRANSFORMER 225 KVA, PRIMARY 480 VAC Wye, SECONDARY 200 VAC WYE, ALUMINUM WINDING, P/N MG-301

Specifications:

• Dry Type Transformer, 225 KVA, 3 PH, 400 Hz, P/N MG-301
• Primary: 400 VAC L-L, 325 Amps, Wye with neutral (N1), 231 VAC L-N
• Primary Taps: None
• Secondary: 200 VAC L-L, 650 Amps, Wye with neutral (N2), 115 VAC L-N
• Aluminum Windings
• Approvals: UL / CSA listed
• K Factor: K-1
• Temperature Rise: 150 degrees C
• Outdoor Enclosure: 40.50″H x 31.50″W x 21.75″D
• Estimated weight: 755 lbs.

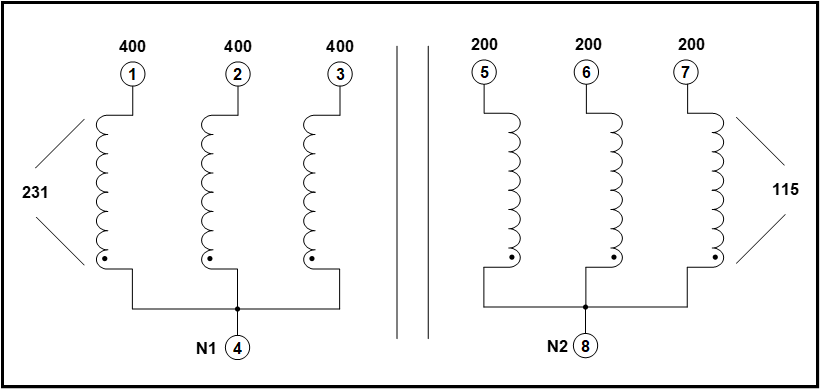

The schematic diagram is shown below:

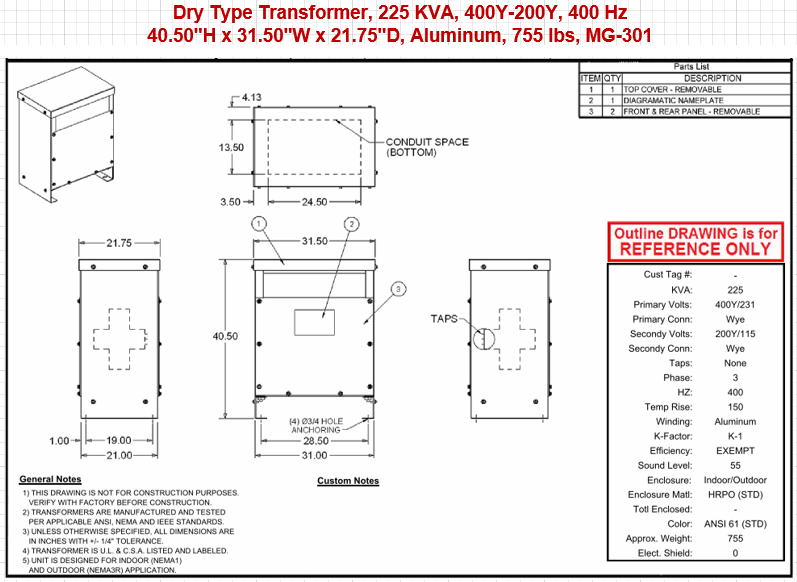

The details of the enclosure are shown below:

The photo of the enclosure  is shown for reference:

All our transformers are custom-built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
