10 KV ISOLATION TRANSFORMER
20 VA, P/N 19414
L/C Magnetics can design and manufacture custom transformers based on your existing design or specific requirements as we specializes in building unique, custom transformers like Isolation High Voltage Transformers. Designed to provide exceptional electrical isolation, they minimize noise interference and enhance protection in high-voltage applications. With advanced insulation techniques and high-quality materials, these transformers offer superior dielectric strength, thermal efficiency, and durability. Whether for industrial, medical, or research applications, we provide tailored solutions to meet your exact needs along with additional application options and a wide range of Isolation High Voltage Transformers. A prime example of our capabilities is our 10 KV Isolation Transformer.
Specifications:
-
- 10 KV Isolation Transformer, 20 VA, 1 PH, 60 Hz, P/N 19414L
- Primary: 120 VAC, 0.166 Amps
- Secondary: 4 VAC, 5 Amps
- 10 KV isolation between primary and secondary
- 10 KV isolation between primary and core
- 10 KV isolation between secondary and core
- Copper winding construction
- Primary connections are high voltage flex lead AWG # 18, red
- Secondary connections are self-lead AWG # 11
- Open core and coil: 5.25″W x 6.00″H x 6.00″D, estimated weight: 15 lbs.
Price: $ 999.00
Lead time: 4 weeks ARO, FOB Anaheim.
Call 714-624-4740 to order for similar products.
We can redesign if your requirements are different.

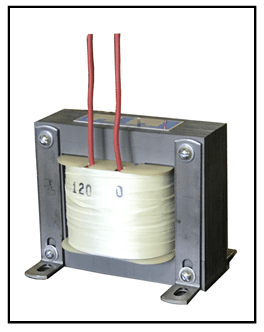

The photo of the transformer is shown below:

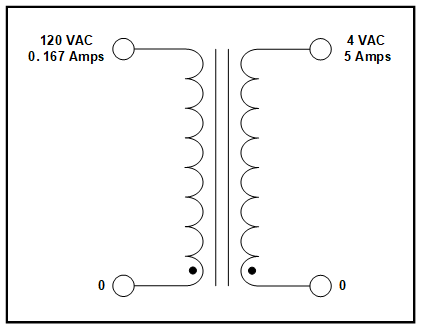

The schematic diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
