DUAL SECONDARY TRANSFORMER
3 KVA, P/N 19496

Specifications:

• Dual Secondary Transformer, 3 KVA, 1 PH, 60 Hz, P/N 19496
• Primary (1, 2): 480 VAC, 6.25 Amps
• Secondary (3, 4): 220 VAC, 6.81 Amps
• Secondary (5, 6): 340 VAC, 4.41 Amps
• Copper winding construction
• Primary and secondary bus bars are 1/8″ x 5/8″ with one hole
• Open core and coil: 9”W x 9”H x 8”D approximately
• Weight: 70 lbs approximately

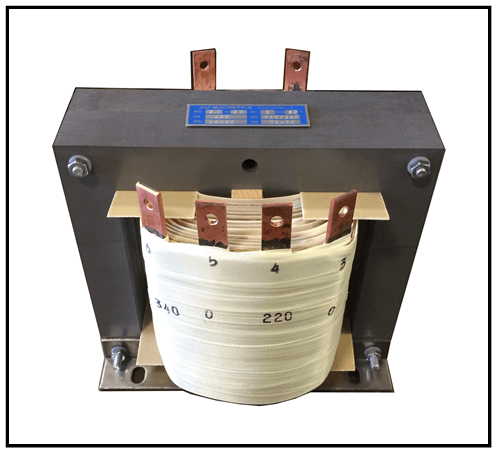

The photo of the transformer is shown below:

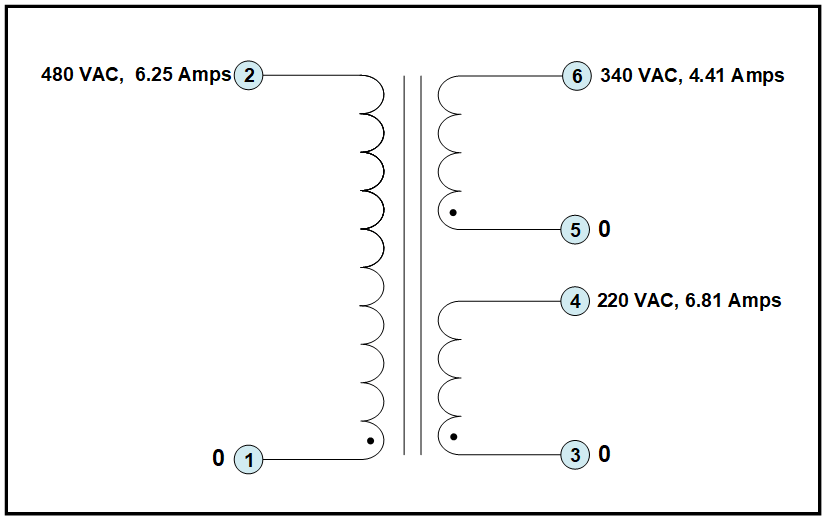

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
