DELTA-DELTA TRANSFORMER, 30 KVA, P/N 19091B - L/C Magnetics

DELTA DELTA TRANSFORMER
30 KVA, P/N 19091B

Specifications:

Isolation Transformer, 30 KVA, 3 PH, 60 Hz, P/N 19091B
Primary: 480 VAC L-L, 36 Amps, Delta
Secondary: 86 VAC L-L, 201 Amps, Delta
Copper winding construction
Primary copper bus bars are 1/8″ x 5/8″ with one hole
Secondary copper bus bars are 1” x 1/4” with one hole
Open core and coil, 11″H x 14.5″W x 14″D
Weight: 350 lbs approx.

The photo of the transformer is shown below:

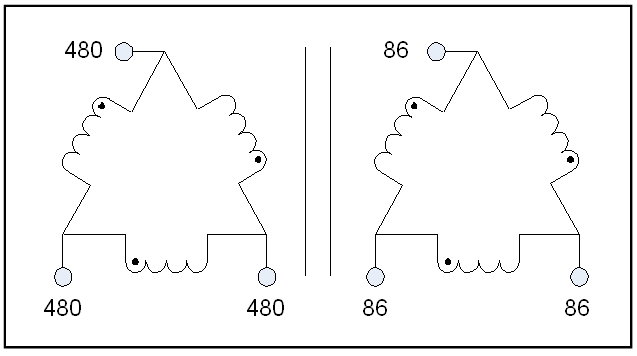

The schematic diagram is shown below:
