DELTA-DELTA TRANSFORMER, 15 KVA, P/N 19090B - L/C Magnetics

DELTA DELTA TRANSFORMER
15 KVA, P/N 19090B

Specifications:

Isolation Transformer, 15 KVA, 3 PH, 60 Hz, P/N 19090B
Primary: 480 VAC L-L, 18 Amps, Delta
Secondary: 43 VAC L-L, 204 Amps, Delta
Copper winding construction
Primary copper bus bars are 1/8″ x 5/8″ with one hole
Secondary copper bus bars are 1” x 1/4” with one hole
Open core and coil, 11″H x 14.5″W x 9″D
Weight: 200 lbs approx.

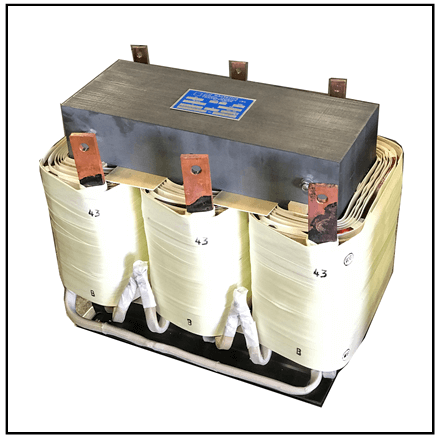

The photo of the transformer is shown below:

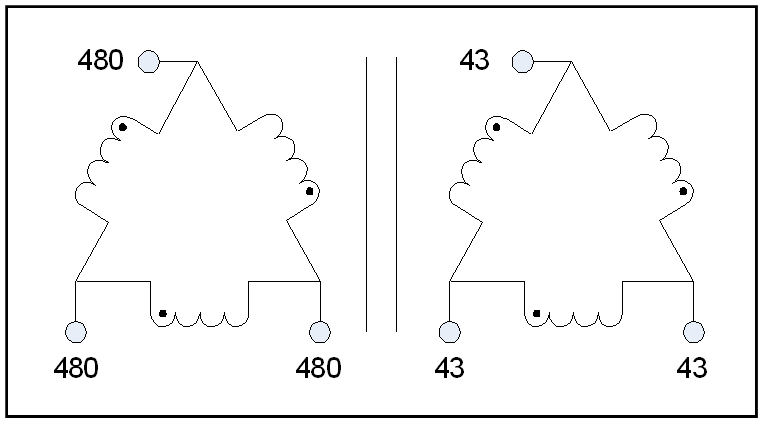

The schematic diagram is shown below:

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
