DELTA DELTA TRANSFORMER, 10 KVA, PRIMARY 115 VAC, SECONDARY 115 VAC, P/N 19436 - L/C Magnetics

DELTA DELTA TRANSFORMER
10 KVA, P/N 19436

Specifications:

Isolation Transformer: 10 KVA, 3 PH, 60 Hz, P/N 19436
Primary (1, 2, 3): 115 VAC L-L, 50 Amps, Delta
Secondary (4, 5, 6): 115 VAC L-L, 50 Amps, Delta
Floating shield (7A, 7B, 7C)
Copper winding construction
Primary and secondary copper bus bars are 1/8″ x 5/8″ with one hole
Open core & coil, 14.5″W x 11″H x 6.5″D
Estimated mounting dimensions: 10.625″W x 4.25″D, 4 slots (3/8″W x 3/4″D)
Estimated weight: 125 lbs.

The photo of the transformer is shown below:

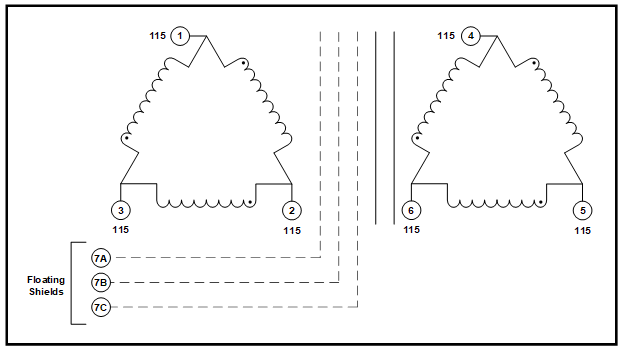

The schematic diagram is shown below:
