TRANSFORMER 750 KVA, 3 PH, 60 HZ, P/N 9929L-1

Specifications:

• Transformer: 750 KVA, 3 PH, 60 Hz, P/N 9929L-1
• Primary: 480 VAC L-L, Wye, 902 Amps, No taps
• Secondary: 600 VAC L-L, Delta, 722 Amps, No taps
• Aluminum windings
• Approvals: None
• Enclosure: 80.25” H x 54.50” W x 43.25” D
• Estimated weight: 3800 lbs.

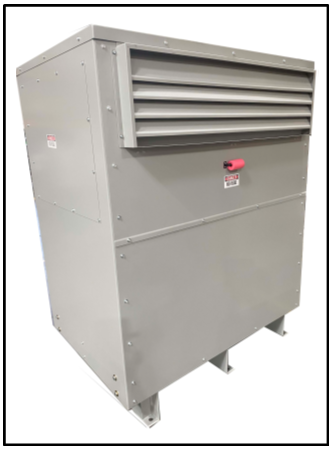

The photo of the transformer and enclosure is shown below:

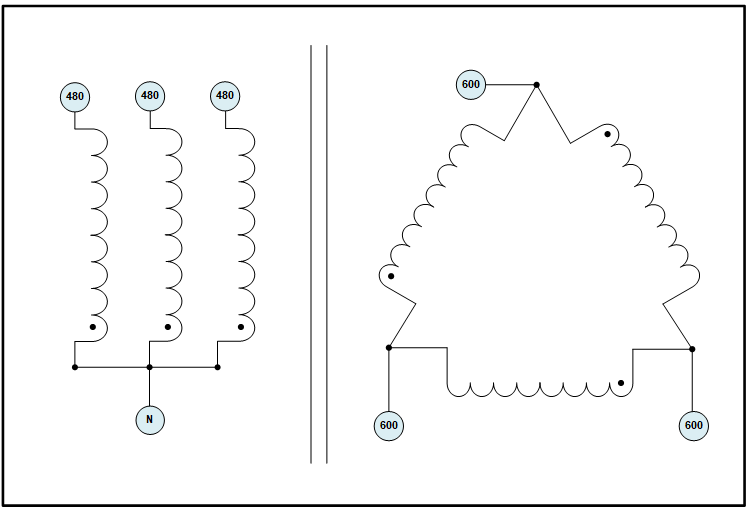

The schematic diagram is shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
