TRANSFORMER, 15 KVA, 1 PH, 60 HZ, P/N 10152L

This specification describes a single-phase, 15 kVA transformer designed to operate at 60 Hz. The unit (Part Number 10152L) has a primary voltage rating of 2400 VAC with a maximum current of 6.25 amps, and a secondary output of 120/240 VAC capable of delivering up to 62.5 amps. It features copper windings, which provide good electrical conductivity and efficiency, and uses a dual-winding construction to isolate the primary and secondary circuits while enabling voltage conversion.

The transformer is built with an open core and coil design, meaning it does not have a fully enclosed housing. Its approximate physical dimensions are 15 inches wide, 16 inches high, and 15 inches deep, although final dimensions are listed as “to be determined.” Each unit weighs about 250 pounds, also subject to confirmation.

Overall, this transformer is intended for stepping down high voltage (2400 VAC) to more usable lower voltages (120/240 VAC) for typical electrical applications, while maintaining durability and performance through its copper windings and robust construction.

Specifications:

• Transformer, 15 KVA, 1 PH, 60 Hz, P/N 10152L
• Primary (1, 2) : 2400 VAC, 6.25 Amps max
• Secondary (3, 4, 5): 120/240 VAC, 62.5 Amps max
• Copper Windings
• Dual-winding construction

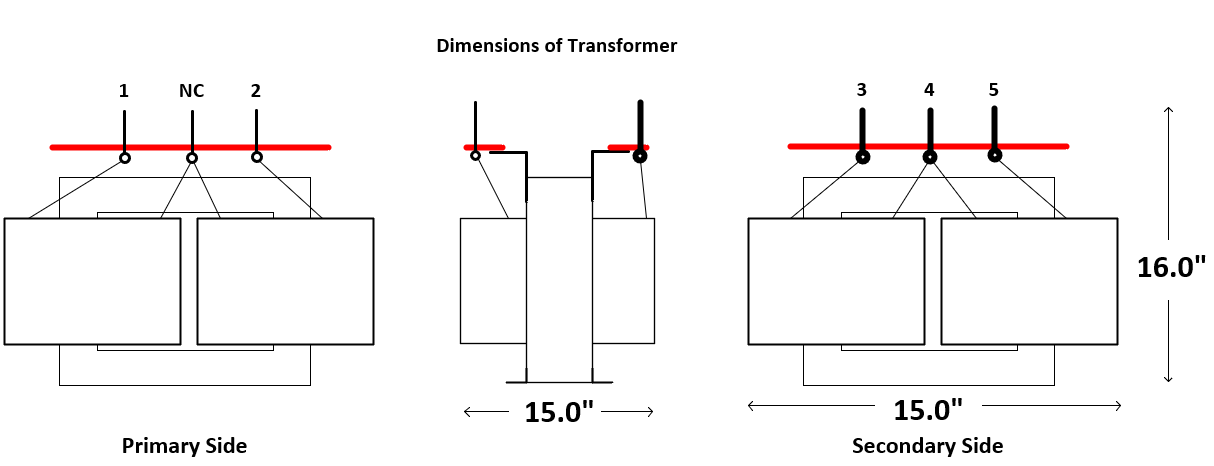

• Open core and coil: 15.0” W x 16.0” H x 15.0” D or TBD
• Weight: 250 lbs. each or TBD

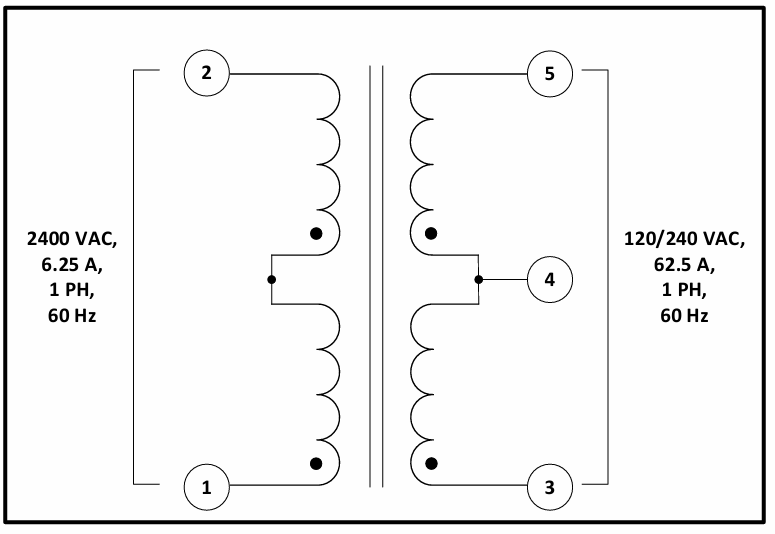

The schematic diagram of the transformer is shown below:

For your specific application, please contact us at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
