TRANSFORMER, 14 KVA, 3 PH, 50/60 HZ, P/N 19879

This 14 kVA three-phase transformer is designed for reliable power distribution in industrial and commercial applications operating at 50/60 Hz. It features copper windings, which provide excellent conductivity and improved efficiency. As a result, the transformer delivers dependable performance in demanding environments.

The unit has a primary rating of 440/480 VAC line-to-line in a Wye configuration with a maximum current of 36.75 amps. In addition, the transformer includes two secondary outputs to support multiple voltage requirements.

Secondary A provides 208/230 VAC line-to-line in a Wye configuration with a maximum current of 27.75 amps, delivering up to 10 kVA. Additionally, it includes a 120 VAC line-to-neutral output for control circuits or auxiliary equipment.

Meanwhile, Secondary B delivers 440 VAC line-to-line in a Wye configuration with a current rating of 5.25 amps, providing 4 kVA. Because of this dual-secondary design, the transformer can power both lower- and higher-voltage loads.

Finally, the transformer is built as an open core and coil assembly, suitable for installation inside electrical panels or enclosures with proper ventilation. The unit measures approximately 14.5” W × 13” H × 15” D and has an estimated weight of 300 lbs.

Specifications:

• Transformer: 14 KVA, 3 PH, 50/60 Hz, P/N 19879
• Primary: 440/480 VAC L-L, Wye, 36.75 Amps max, (14 KVA)
• Secondary A: 208/230 VAC L-L, Wye, 27.75 Amps max, (10 KVA), (120 VAC L – N2)
• Secondary B: 440 VAC L-L, Wye, 5.25 Amps, (4 KVA)
• Copper windings.
• Open core and coil: 14.5” W x 13” H x 15” D or TBD
• Estimated Weight: 300 lbs. or TBD.

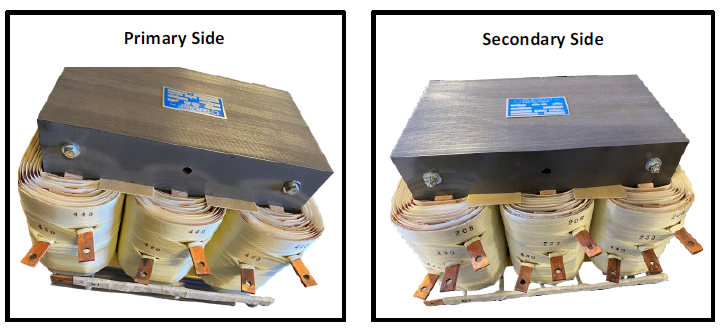

The photos of the transformer are shown below.

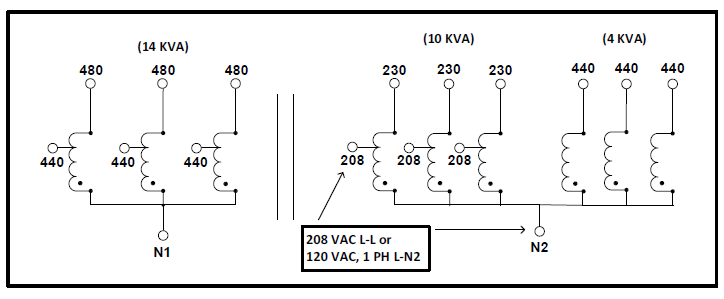

The schematic of the transformer is shown below.

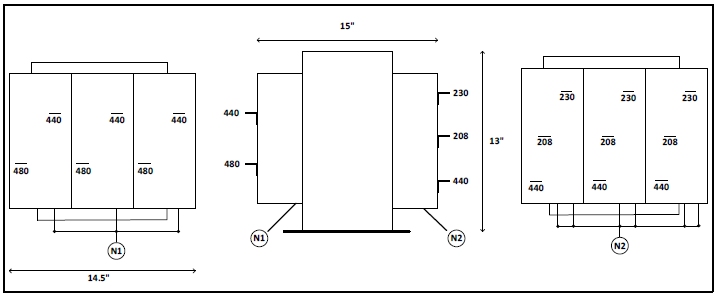

The dimensions of the transformer are shown below.

For your specific application, please contact us at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
