TRANSFORMER, 0.5 KVA, 3 PH, 60 Hz
Specifications:
- Transformer, 0.5 KVA, 3 PH, 60 Hz, P/N 19898
- Primary: 480 VAC L-L, Delta (1, 2, 3)
- Secondary: 455 VAC L-L, Wye (4, 5, 6)
- Copper Windings
- Input and output connections are J-lugs on the windings
- Weight: 55 lbs. or TBD

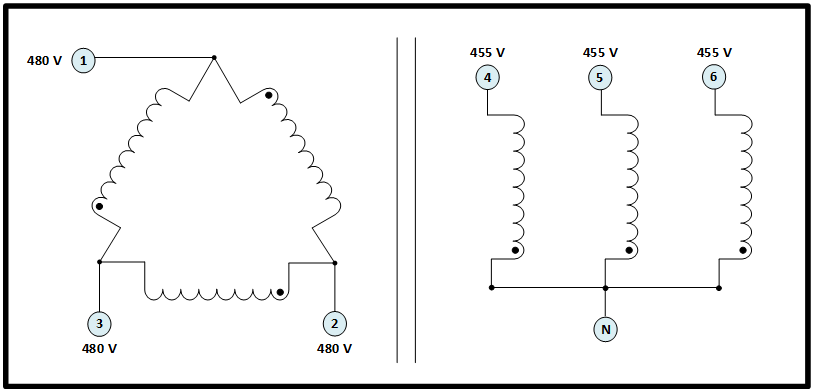

The schematic diagram of the transformer is shown below:

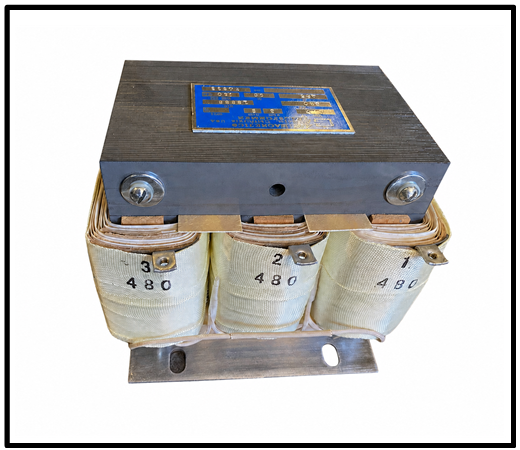

The photo of the primary side of the transformer is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
