TRANSFORMER, 0.2 KVA, 1 PH, 60 Hz
Specifications:
• Transformer, 0.2 KVA, 1 PH, 60 Hz, P/N 19897
• Primary (1, 2): 42 V, 4.76 Amps
• Secondary (3, 4): 650 V, 0.31 Amps
• Copper windings
• Leads are J-lugs
• Open core & coil
• Estimated weight: 15 lbs.
The photo of the transformer is shown below:

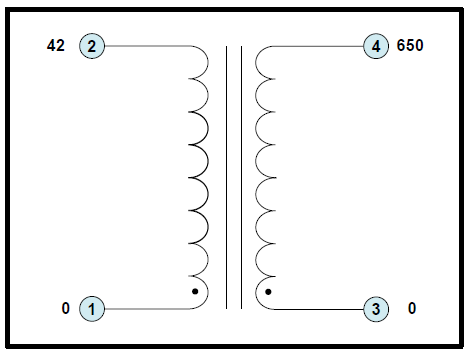

The schematic diagram is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
CONTACT FOR A FREE QUOTE
