THREE PHASE BOOST TRANSFORMER, 30 KVA,
INPUT 208 VAC, OUTPUT 480 VAC, P/N 19552N
Specifications:
- Buck Boost transformer: 30 KVA, 3 PH, 60 Hz, P/N 19552N
- Input: 208 VAC L-L, 84 Amps
- Output: 480 VAC L-L, 36 Amps
- Copper winding construction
- Approvals: None
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Indoor enclosure: 24”H x 18”W x 16”D
- Estimated weight: 300 lbs.
The photos of the transformer and the enclosure is shown below:

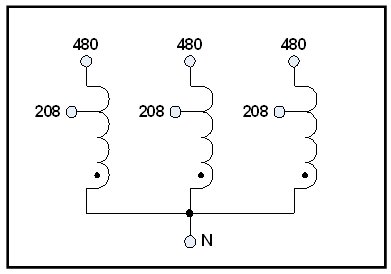

The schematic diagram is shown below:
The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
