SILICON CORE, E + E, TRANSFORMER 400 VA, P/N 10139L2

The silicon core, E + E, 400 VA 3-phase 1000 Hz transformer (P/N 10139L2) delivers precise, reliable high-frequency power for industrial equipment, test systems, and specialized 3-phase applications. Specifically, its primary voltage is 170 VAC line-to-line in a Wye configuration, drawing 1.35 A, while the secondary provides 25 VAC line-to-line at 9.5 A, ensuring stable low-voltage output for sensitive circuits. In addition, copper windings minimize energy loss, and the laminated ferrite core enhances magnetic performance while reducing leakage flux. Furthermore, measuring 5” W × 5” D × 3” H, the transformer fits into tight spaces, with solder-lug primary and J-lug secondary terminations for easy integration. Therefore, it combines compact size, high efficiency, and durability to deliver dependable 1000 Hz power for professional engineers.

Specifications:

• Transformer: 400 VA, 3 PH, 1000 Hz, P/N 10139L2
• Primary: 170 VAC L – L, Wye, 1.35 Amps
• Secondary: 25 VAC L – L, Wye, 9.5 Amps
• Silicon E + E Core is used. See photo below.
• Open core and coil: 5” W x 5” D x 3” H or TBD
• Primary terminations are solder lugs, Secondary terminations are J-lugs
• Copper windings
• Mounting provisions: None

The photo of a similar unit is shown below:

The photo of the Silicon E + E Core is shown below:

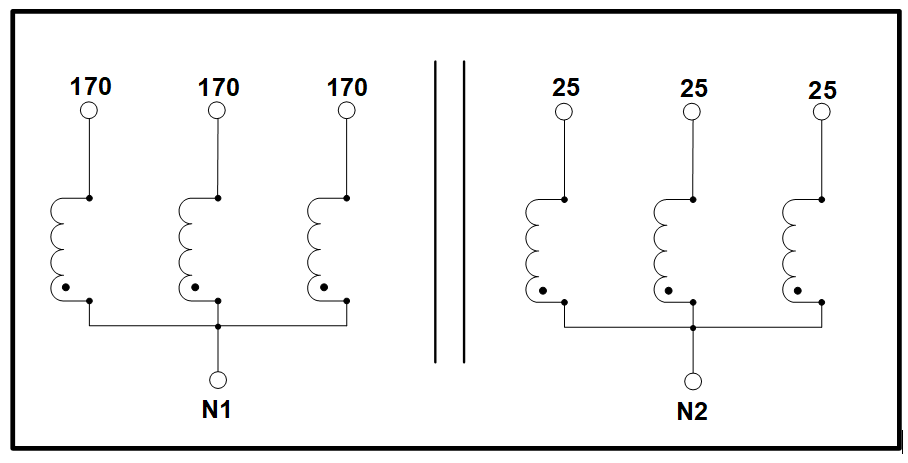

The schematic diagram of the transformer is shown below:

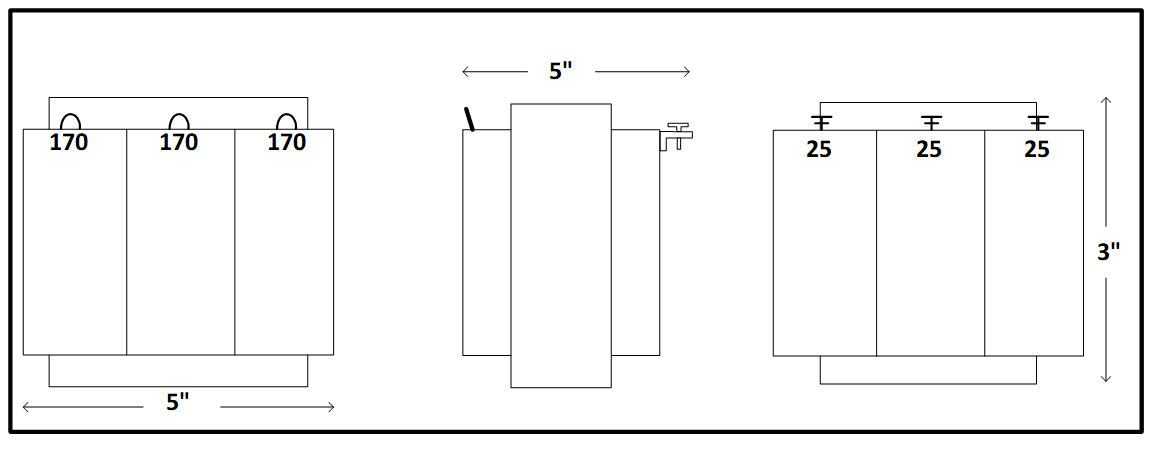

The outline drawing of the transformer is shown below:
