SCOTT T TRANSFORMER 350 KVA, 3/2 PH, 60 HZ

The 350 kVA Scott-T Transformer is designed for applications requiring efficient three-phase to two-phase power conversion. Each transformer is manufactured using premium magnetic steel cores and copper or aluminum windings to provide dependable long-term operation. Custom voltage ratings, enclosure styles, cooling methods, and insulation systems are available to meet specific project requirements.

Specifications:
• Scott T Transformer, 350 KVA, 3/2 PH, 60 Hz, P/N 10150L1
• Primary: 480 VAC L-L, 3 PH, 364.6 Amps (1, 2, 3)
• Secondary (MAIN): 300 VAC, 1 PH, 583.3 Amps (4, 5)
• Secondary (TEASER): 300 VAC, 1 PH, 583.3 Amps (6, 7)
• Indoor Floor Mount Enclosure: 65” W x 36” D x 50” H or TBD
• Aluminum Windings
• Weight: 2800 lbs. each or TBD

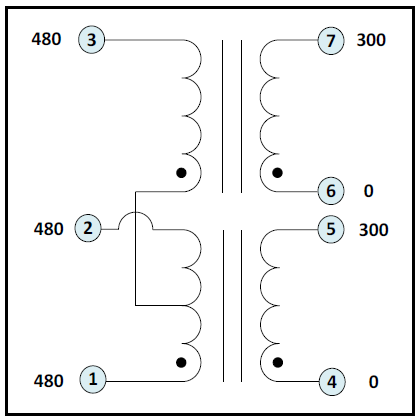

The schematic diagram is shown below:

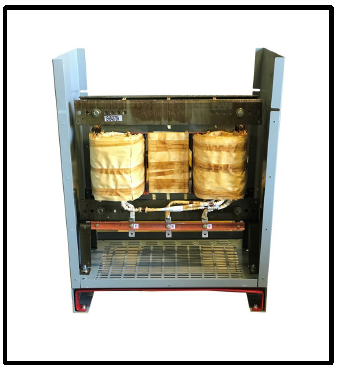

A photo of a similar transformer is shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
