SCOTT T TRANSFORMER, 100 KVA, 3 PH, 60 HZ
Customer requirement is shown below:
• Scott T Transformer, 100 KVA, P/N 10231L1N
• Input: 480 VAC, 3 PH, 60 HZ, 120.3 Amps
• Output 1 (MAIN): 22 / 24/ 26 VAC
• Output 2 (TEASER): 22 / 24/ 26 VAC
• Secondary taps are on the primary side
• Indoor enclosure dimensions: 42”H x 32”W x 22”D
• MAIN and TEASER outputs are 90 degree out of phase.
• All input and output connections are inside the enclosure
• A,B,C is connected to pin 5 as a jumper

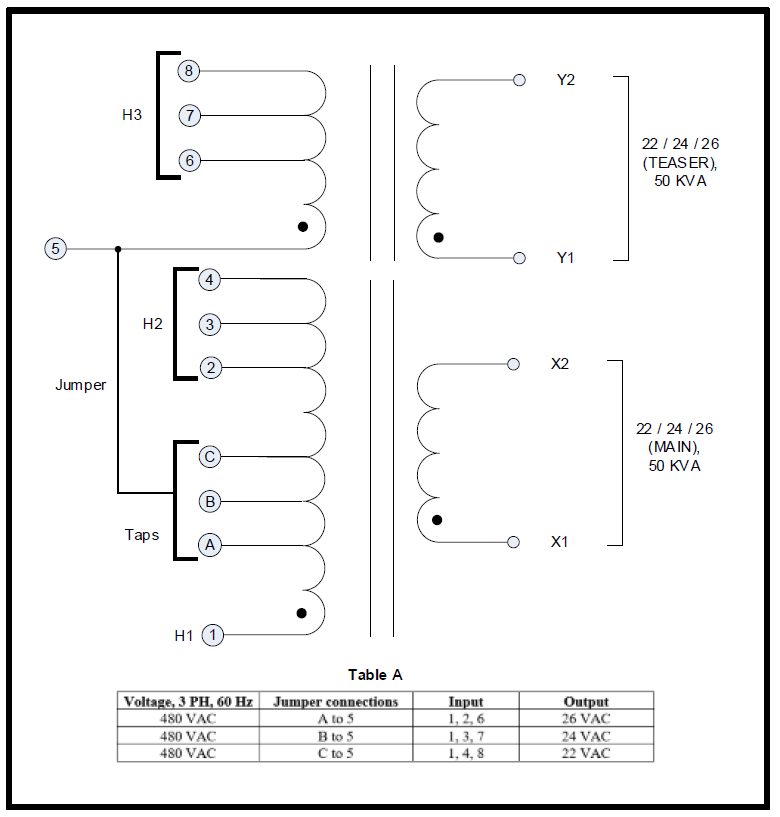

The system schematic diagram is shown below:
The photo of the Scott T Transformer is shown below:

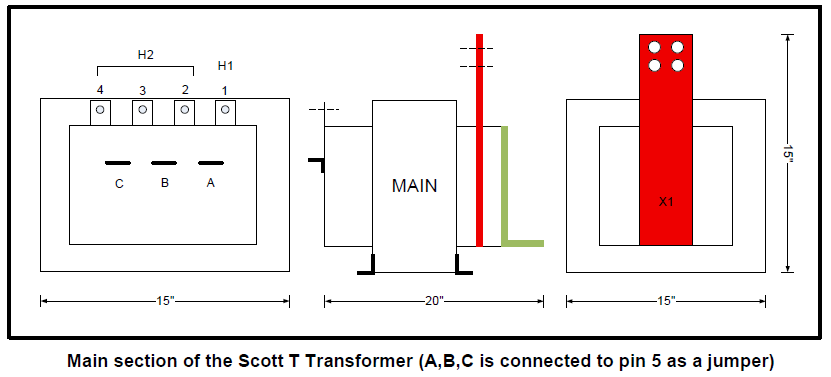

The dimensions of the Main Transformer is shown below:
The dimensions of the Teaser Transformer is shown below:

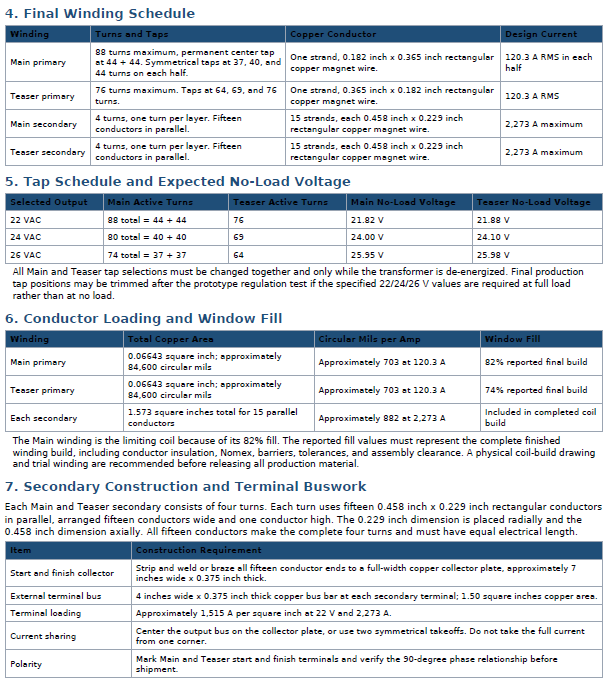

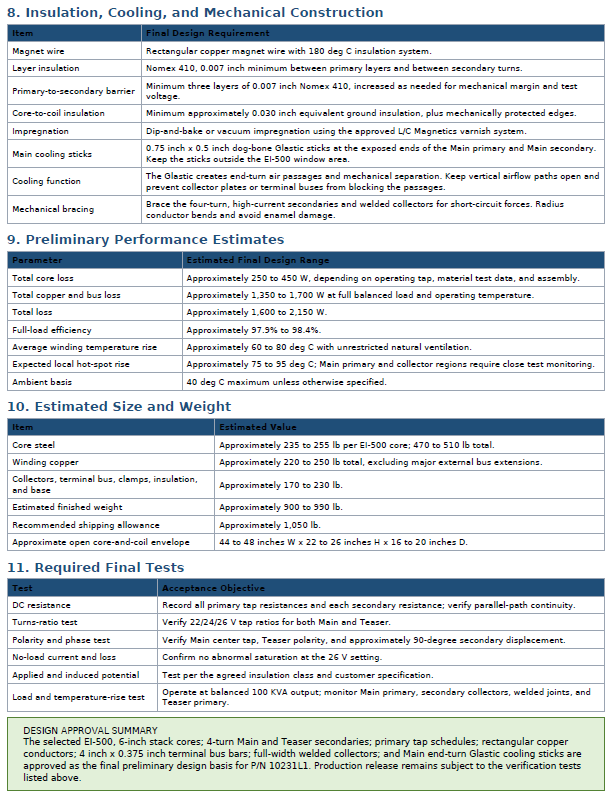

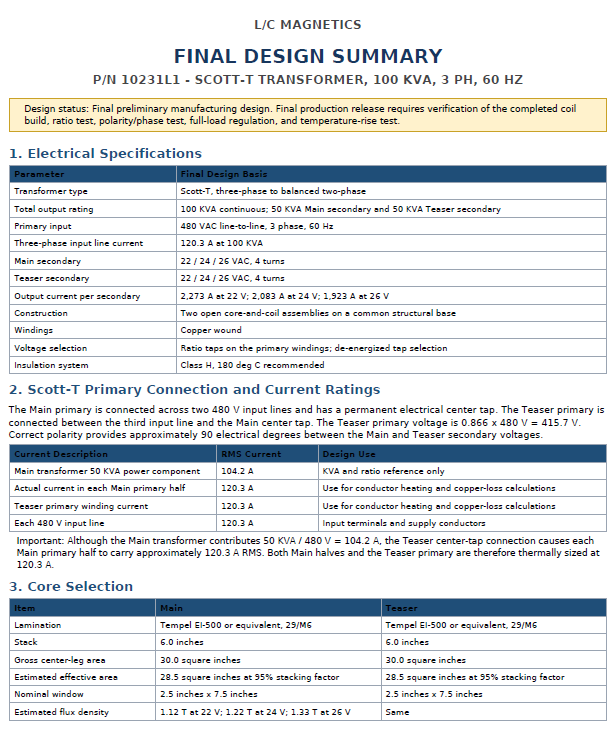

See the Final Design Summary below:
