REPLACEMENT TRANSFORMER 0.35 KVA

Specification:

Replacement Transformer, 0.35 KVA, 1 PH, 50/60 Hz, P/N 19854A
Primary (0, 1, 2, 3): 0/380/400/415 VAC, 0.92 Amps
Secondary (4, 5): 8 VAC, 0.625 Amps
Secondary (6, 7): 20 VAC, 1.5 Amps
Secondary (8, 9): 24 VAC, 3.125 Amps
Secondary (10, 11): 230 VAC, 1.05 Amps
Copper windings
Open Core & Coil: 5.250” W x 4.375” D x 6.000” H
Estimated weight: 20 lbs.

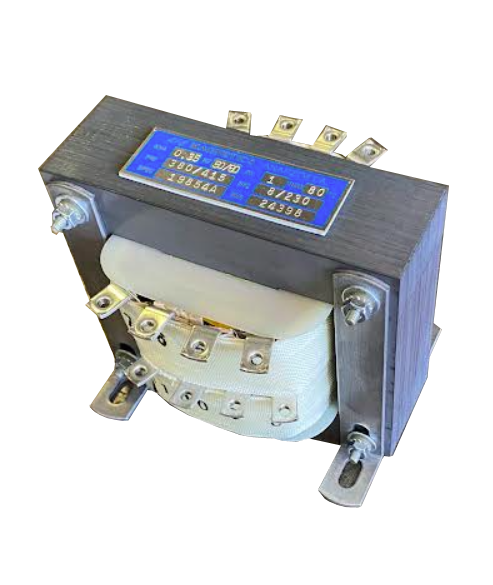

The photo of the transformer is shown below:

19854A

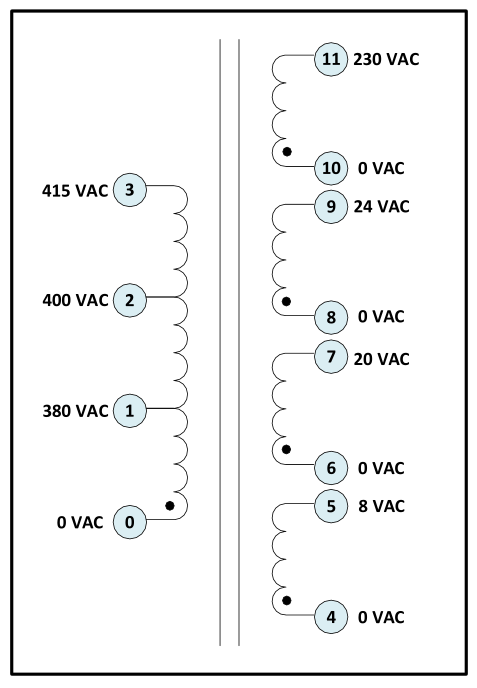

The schematic of the transformer is shown below:

Screenshot 2025-10-02 183020
