POLE-MOUNTED TRANSFORMER, 165 KVA, 1 PH, 60 HZ

Customer requirements are shown below:

• Pole-Mounted Transformer: 165 KVA, 1 PH, 60 Hz, P/N 10258L1
• Primary: 13200 VAC, 12.5 A, (Taps: 12540, 12870, 13200, 13530, 13860)
• Secondary: 120 VAC, 1375 A
• Aluminum winding construction
• Dimensions (mm): 1020 x 960 x 1400
• Weight: 640 kg or TBD
• Units are made for L/C Magnetics Inc. by a supplier in China
• Unit will carry L/C Magnetics Inc. nameplate

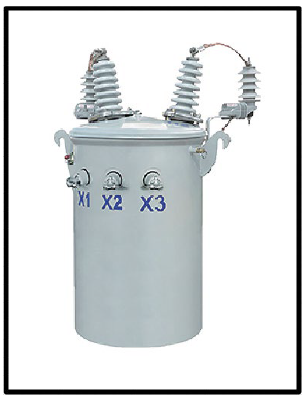

The photo of the pole mounted transformer is shown below:

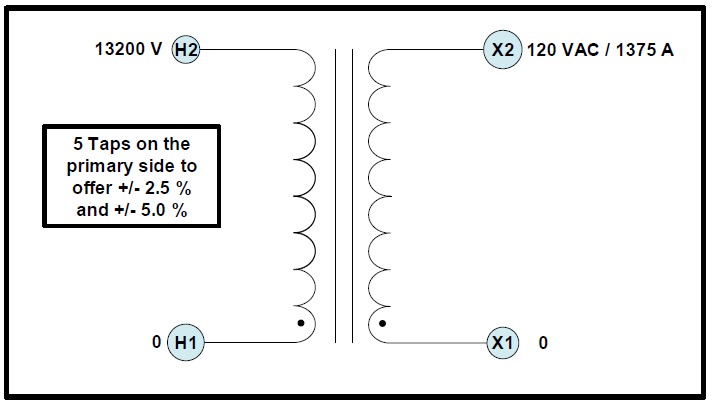

The schematic is shown below. Tap changer is on the primary side.

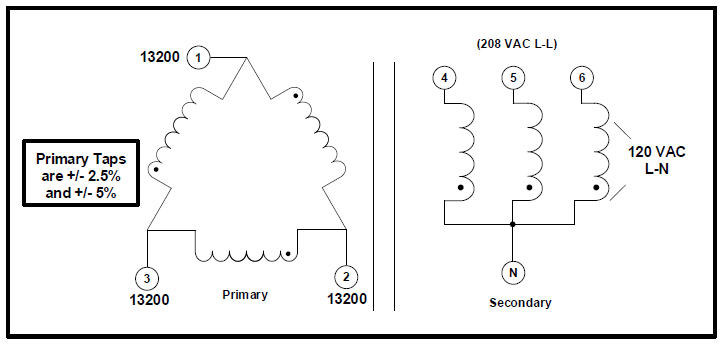

The schematic of three single phase pole mount transformers integrated together as DYN1 is shown below as a 495 KVA, 3 PH, 60 Hz transformer:

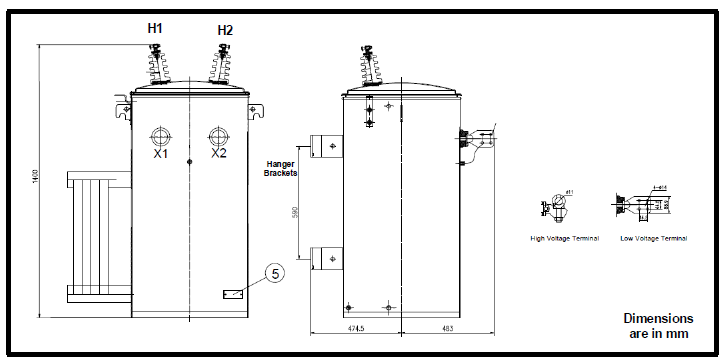

The outline drawing of the pole-mount transformer is shown below:

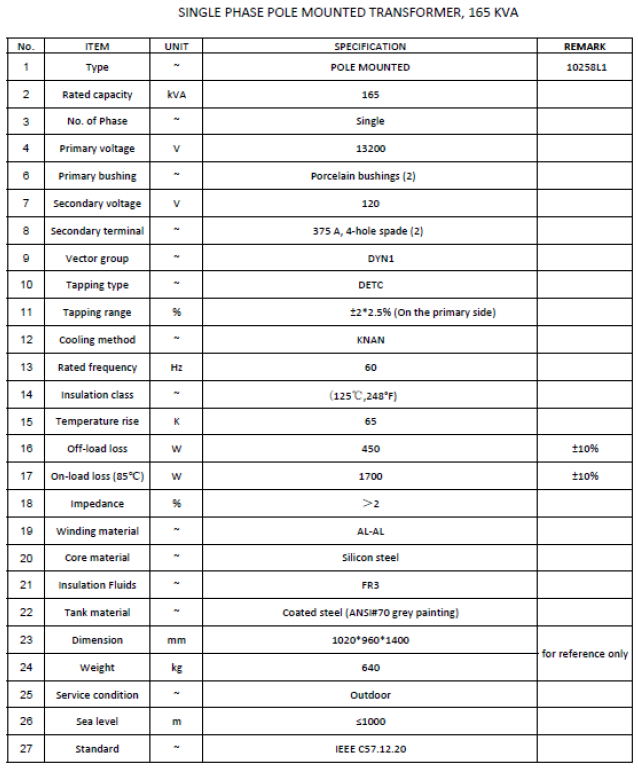

The specifications of the 165 KVA pole-mount transformer are outlined below:
