OUTDOOR OIL-IMMERSED TRANSFORMER, 500 KVA, 3 PH, 50 HZ

Customer requirements are shown below:

• Outdoor Oil-Immersed Transformer: 500 KVA, 3 PH, 50 Hz, P/N 10233L1
• Primary: 11000 VAC L-L, Delta, Plus Taps
• Secondary: 400 VAC L-L, 240 VAC L-N, Wye
• Copper Windings

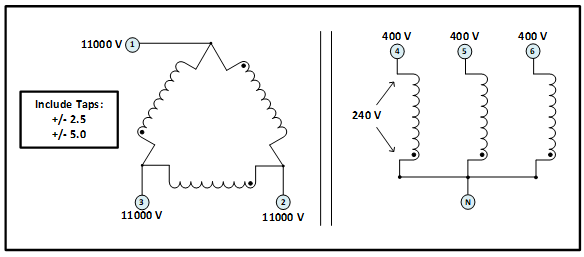

The schematic of the transformer is shown below:

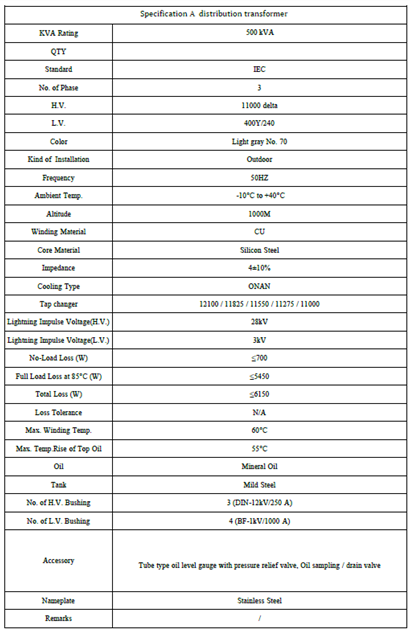

The specifications of the transformer are shown below:

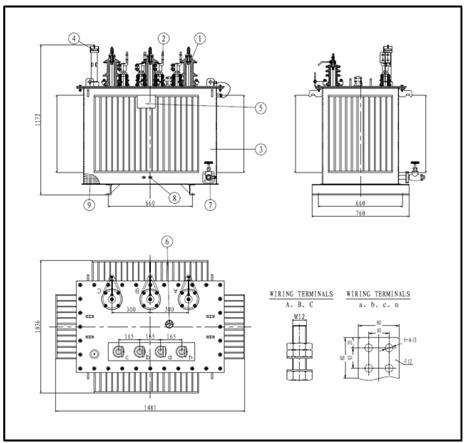

The dimensions of the transformer are shown below:

The name plate of the transformer is shown below:
