OIL-FILLED TRANSFORMER, 6 MVA, 3 PH, 60 Hz

Specifications:

• Oil-Filled Transformer, 6 MVA, 3 PH, 60 Hz, P/N 10267L1
• Primary: 44 KV L-L, 80 A, Delta with standard taps +/-  2.5% and +/- 0.5%
• Secondary: 600 VAC L-L, Wye, no taps
• Copper windings
• CSA compliant
• Made in China
• Present design shows squared joints. It shall be upgraded to mitered joints

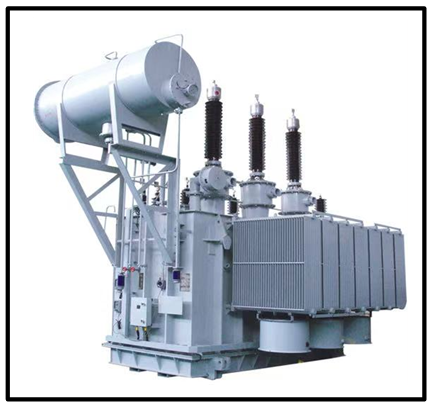

The photo of the oil-filled transformer is shown below:

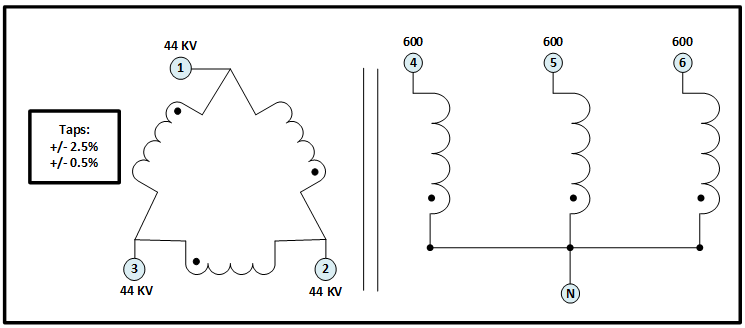

The schematic of the transformer is shown below:

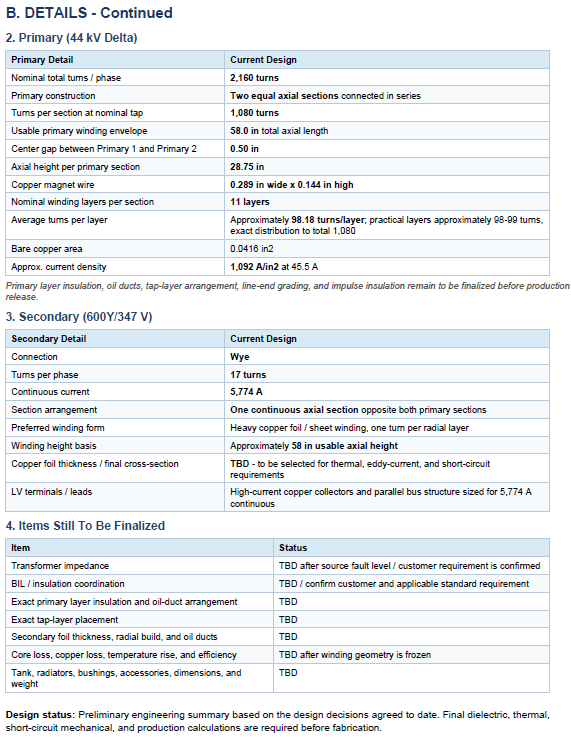

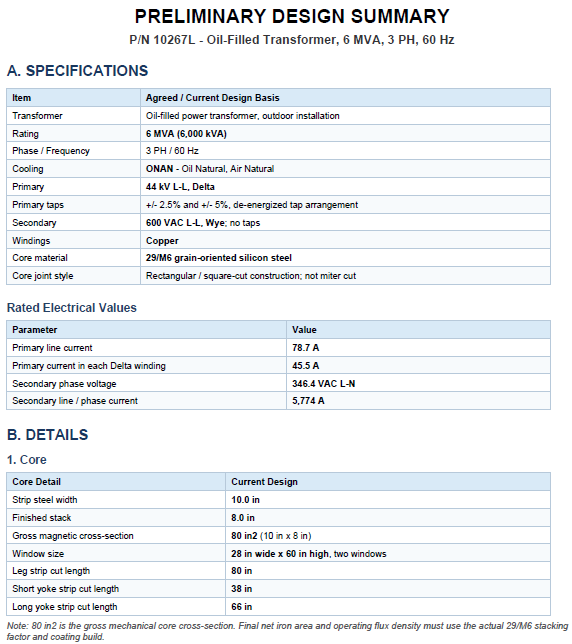

See Preliminary Design Summary Below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com. Construction details are shown as squared joints. The design is subject to change to mitered joints.
