100000 VOLT, OIL FILLED TRANSFORMER

This unit is a 20 kVA, single-phase, oil-filled transformer, part number 10042L, built for operation at 60 Hz and intended for high-voltage applications. It is designed to accept a 220 VAC input on the primary side and step that voltage up to a 100 kV output on the secondary side, which is delivered through a single high-voltage bushing mounted on the top of the tank. The oil-filled construction provides both electrical insulation and effective cooling, helping ensure reliable performance under continuous or demanding operating conditions. The transformer is housed in a compact, sealed metal enclosure with a footprint of approximately 30 inches by 30 inches and an overall height of about 35 inches, making it suitable for installations where space is limited but high-voltage capability is required.

Specifications:

• Oil Filled Transformer, 20 KVA, 1 PH, 60 Hz, P/N 10042L
• Input (1, 2): 220 VAC
• Output (3, 4): 100 KV
• Output connection is one bushing
• Stainless steel enclosure
• Dimensions: 30″ W x 30″ L x 35″ H

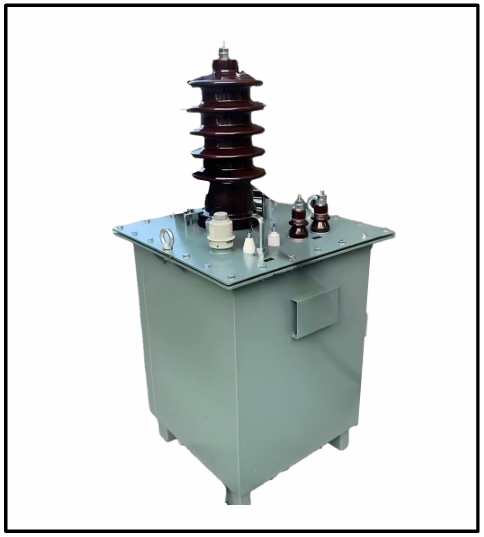

The photo of the transformer is shown below:

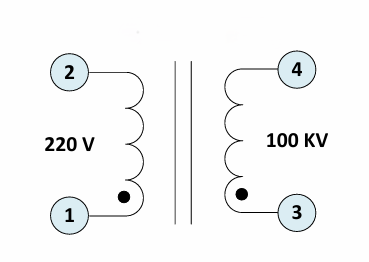

The schematic diagram of the transformer is shown below:

All our oil-filled transformers are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
