OIL FILLED POLE MOUNT 50 KVA TRANSFORMER, SINGLE PHASE

This 50 KVA pole mount transformer from L/C Magnetics is a single-phase, oil-filled transformer designed for utility, industrial, and commercial power distribution applications. P/N 10302L3 is rated for 50 KVA, single phase, 60 Hz operation and provides a practical pole-mounted solution when dependable voltage transformation and outdoor service are required.

The transformer is designed with a 4800 VAC primary and a 120/240 VAC secondary. The primary winding is rated approximately 10.4 amps, while the secondary provides up to approximately 208 amps. Aluminum windings are used to provide an effective combination of electrical performance, weight, and cost.

Specifications:

• Oil Filled Transformer: 50 KVA, 1 PH, 60 Hz, P/N 10302L3
• Primary (H1, H2): 4800 VAC L-N, Wye, 10.4 Amps
• Secondary (X1, X2, X3): 120/240 VAC, 208 Amps max.
• Aluminum windings
• Total losses: 535 W
• Temperature Rise: 60 degrees C
• Tank body: 560 mm diameter x 810 mm H
• Dimensions: 720x 640 x 810 mm
• Weight: 260 Kg or TBD

The photo of the transformer is shown below:

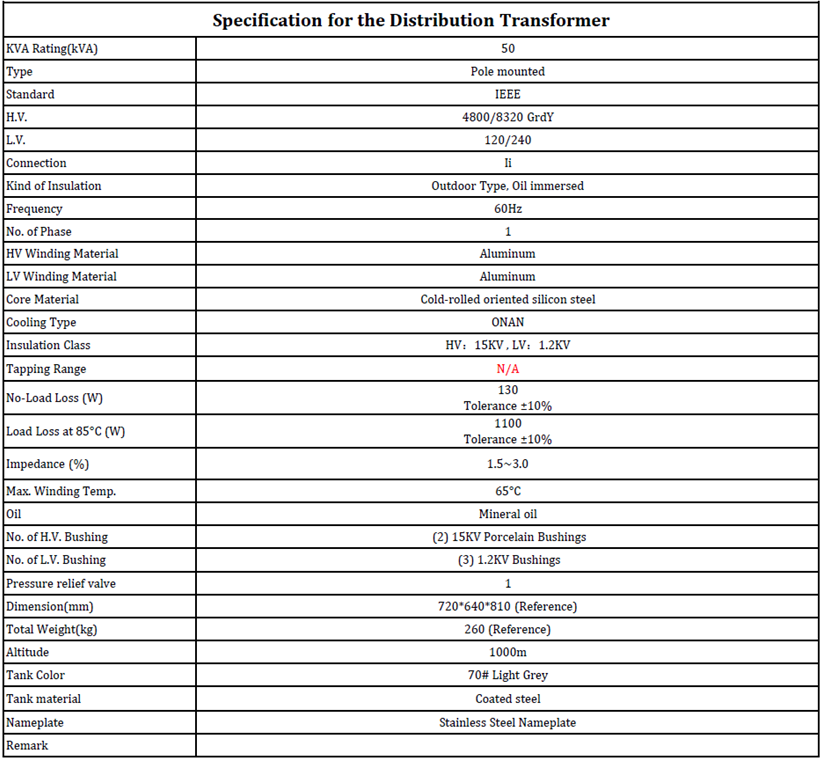

Design details are summarized in the table below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
