OIL-FILLED PAD MOUNTED TRANSFORMER, 750 KVA, 3 PH, 60 Hz

Specifications:

• Oil-Filled Pad Mounted Transformer, 750 KVA, 3 PH, 60 Hz, P/N 10250L
• Primary (1, 2, 3): 13,200 VAC L-L Delta, 33 Amps, with taps
• Secondary (4, 5, 6): 208 VAC L-L Wye, 120 VAC L-N, 2082 Amps
• Copper windings
• Weight and dimensions are TBD currently
• Stainless steel tank
• Made in USA.
• Wooden crate is not included in the price.
• Warranty: 1 Year

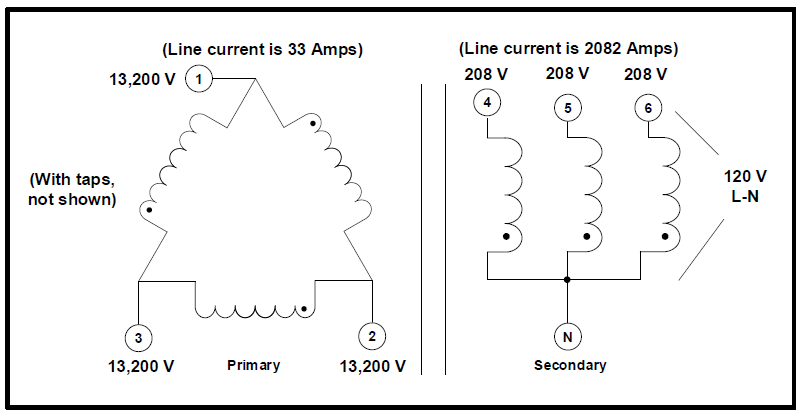

The schematic diagram is shown below:

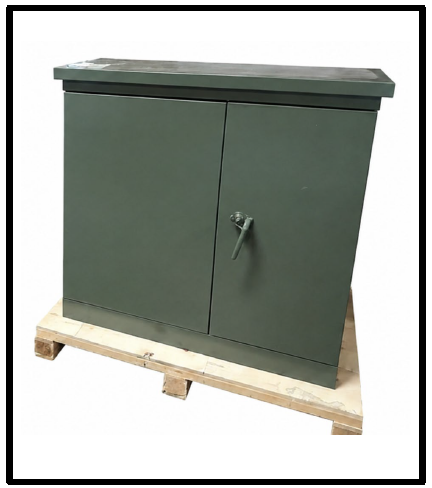

The photo of an Oil-Filled 750 KVA, 3 PH, Pad Mounted Transformer, (Made in USA) is shown below:

The photo of an Oil-Filled 100 KVA, 1 PH, Pad Mounted Transformer, (Made in USA) is shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
