OIL FILLED PAD MOUNT 50 KVA TRANSFORMER, SINGLE PHASE
The 50 kVA single phase pad mount transformer, P/N 10302L5, is an oil-filled distribution transformer designed for applications requiring a 4,800 VAC primary and 120/240 VAC secondary. This transformer uses aluminum windings and is supplied in a pad-mounted enclosure suitable for utility, industrial, commercial, and specialized power distribution applications.
L/C Magnetics designs and manufactures custom oil-filled transformers according to customer voltage, current, enclosure, dimensional, and application requirements.
Specifications:
- Oil Filled Transformer: 50 KVA, 1 PH, 60 Hz, P/N 10302L5
- Primary (H1, H2): 4800 VAC L-N, Wye, 10.4 Amps
- Secondary (X1, X2, X3): 120/240 VAC, 208 Amps max.
- Aluminum windings
- Without LBOR
- Total Losses: 550 W
- Temperature Rise: 50 degrees C
- Pad Mount Enclosure
- Dimensions: 700 x 950 x 900 mm
- Weight: 550 Kg or TBD
The photo of the transformer is shown below:

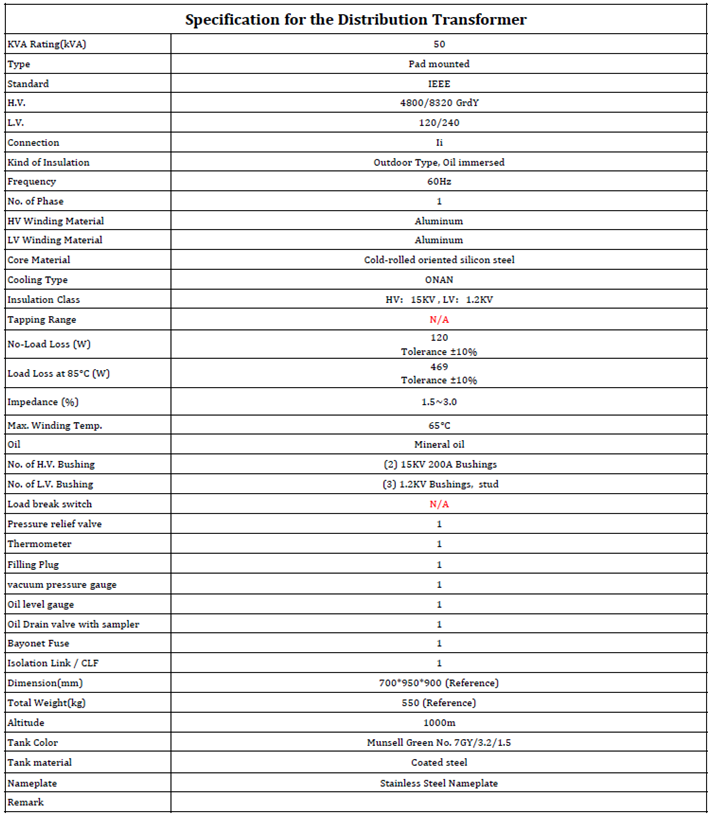

The design details are summarized in the table below:
