OIL FILLED PAD MOUNT 50 KVA TRANSFORMER, SINGLE PHASE
The 50 KVA single phase pad mount transformer P/N 10302L6 is an oil-filled distribution transformer designed for outdoor pad-mounted applications. This unit operates at 60 Hz with a 4800 VAC line-to-neutral primary and a 120/240 VAC secondary. It provides a rugged solution for utility, commercial, and industrial power distribution applications requiring a single phase pad-mounted transformer.
Specifications:
- Oil Filled Transformer: 50 KVA, 1 PH, 60 Hz, P/N 10302L6
- Primary (H1, H2): 4800 VAC L-N, Wye, 10.4 Amps
- Secondary (X1, X2, X3): 120/240 VAC, 208 Amps max.
- Aluminum windings
- With LBOR
- Total losses: 550 W
- Temperature Rise: 50 degrees C
- Pad Mount Enclosure
- Dimensions: 700 x 950 x 900 mm
- Weight: 550 Kg or TBD
The photo of the transformer is shown below:

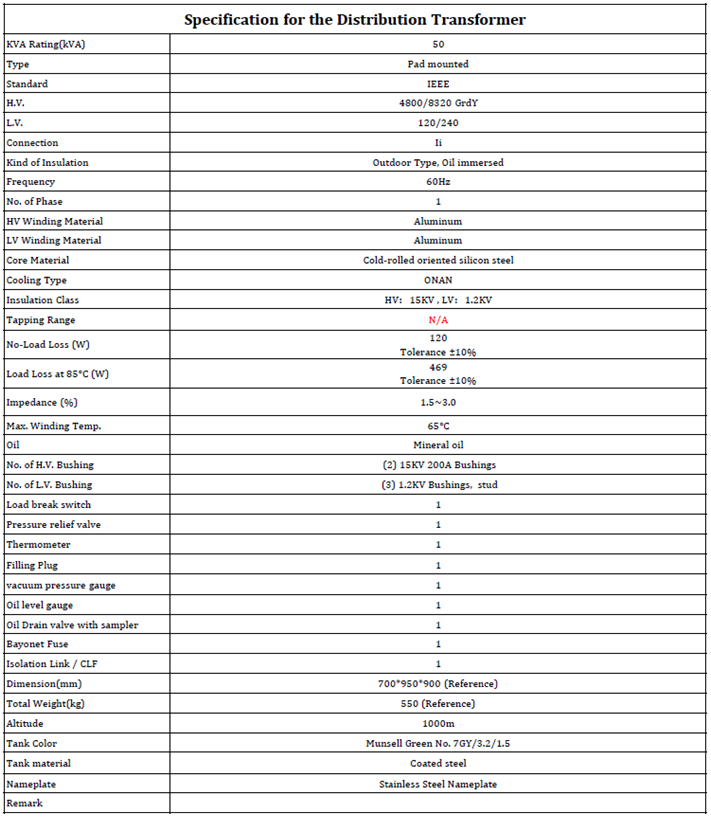

The design details are summarized in the table below:
