OIL FILLED PAD MOUNT 167 KVA TRANSFORMER, SINGLE PHASE

The 167 KVA pad mount transformer from L/C Magnetics is a custom-designed, single-phase, oil-filled transformer intended for outdoor pad-mounted electrical applications. P/N 10302L8 is rated 167 KVA, single phase, 60 Hz and provides a 4,800 VAC primary with a 120/240 VAC secondary. The transformer uses aluminum windings and is supplied in a rugged pad-mount enclosure.

This 167 KVA single phase pad mount transformer is designed for applications requiring reliable voltage transformation, high secondary current capability, and enclosed outdoor installation.

Specifications:

• Oil Filled Transformer: 167 KVA, 1 PH, 60 Hz, P/N 10302L8
• Primary (H1, H2): 4800 VAC L-N, Wye, 34.8 Amps
• Secondary (X1, X2, X3): 120/240 VAC, 696 Amps max.
• Aluminum windings
• Without LBOR
• Total losses: 1600 W
• Temperature Rise: 60 degrees C
• Pad Mount Enclosure
• Dimensions: 1100 x 1200 x 1100 mm
• Weight: 990 Kg

The photo of the transformer is shown below:

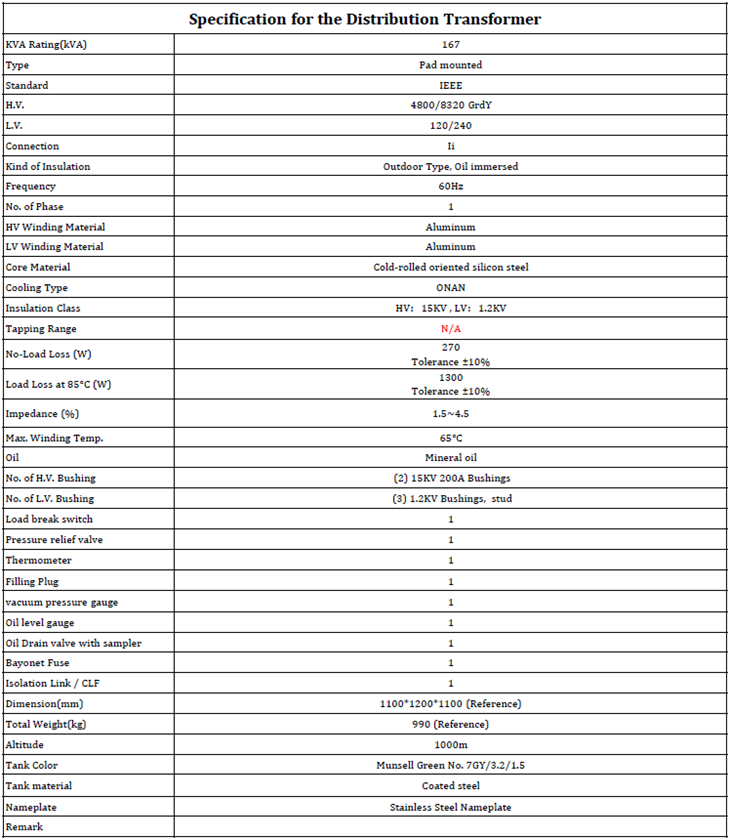

The design details are summarized in the table below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
