OIL FILLED PAD MOUNT 1000 KVA TRANSFORMER, THREE PHASE

Specifications:

• Oil Filled Transformer: 1000 KVA, 3 PH, 60 Hz, P/N 10302L10
• Primary A (H1A, H2A. H3A): 4800 VAC L-N, Wye
• Primary B (H1B, H2B. H3B): 4800 VAC L-N, Wye
• Secondary (X1, X2, X3): 120 VAC, L-N, Wye
• Aluminum windings
• Bay-O-Net Fusing with isolation links and scoop drip shield under each fuse
• Total losses: 10000 W
• Pad Mount Enclosure
• Dimensions: 1800 x 1900 x 1800 mm
• Weight: 3480 Kg or TBD

The photo of the transformer is shown below:

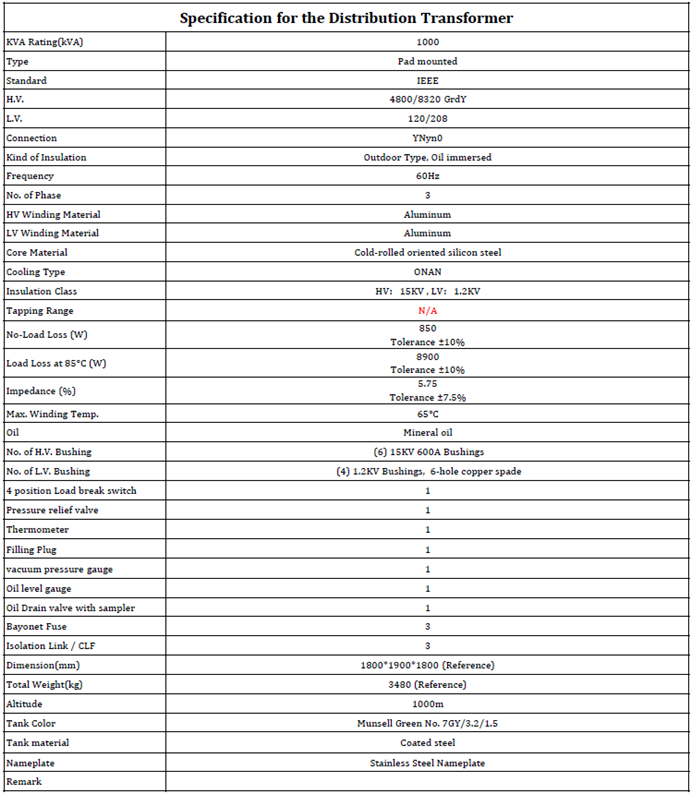

The design details are summarized in the table below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
