NEMA 4X PAD MOUNTED OIL FILLED TRANSFORMER
500 KVA, 3 PH, 60 HZ, P/N 10084L
Our engineering team will conduct an inspection and design based on your requirements to provide you with a new custom transformer specifically engineered and manufactured by L/C Magnetics. High current transformers are specialized instruments crafted to precisely measure and convert elevated current levels, thereby enhancing monitoring and protection with in various electrical systems. We are pleased to present a special offer on our 500 KVA NEMA 4X Pad Mount Oil Filled Transformer. Should you have different requirements, please do not hesitate to contact us.
Specification:
-
- NEMA 4X Pad Mounted Oil Filled Transformer 500 KVA, 3 PH, 60 Hz
- Primary: 2400 VAC L-L, Delta, 121 Amps
- Secondary: 480 VAC L-L, Wye, 601 Amps
- Copper Windings
- Mineral Oil: FR3
- NEMA 4X Enclosure: 1560 x 1450 x 1600 mm
- Weight: 2750 Kg or TBD

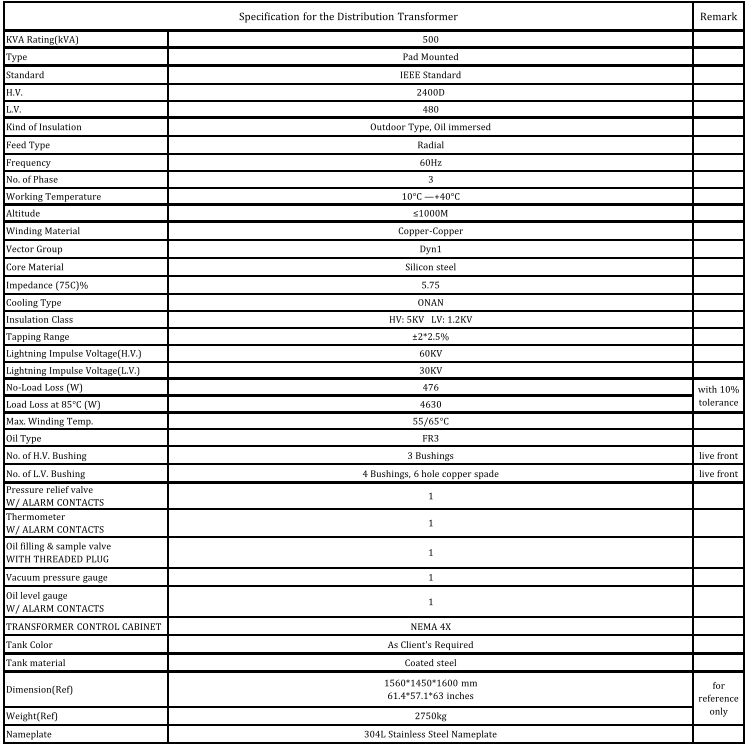

Additional information is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com
CONTACT FOR A FREE QUOTE
