LOW FREQUENCY TRANSFORMER, 1 KVA, 1 PH, 9 HZ TO 200 HZ

The 1 kVA Low Frequency Transformer from LC Magnetics is designed for reliable operation across a wide frequency range from 9 Hz to 200 Hz. Built for demanding industrial, laboratory, and specialty applications, this custom transformer provides dependable performance while accommodating unique voltage, frequency, and power requirements.

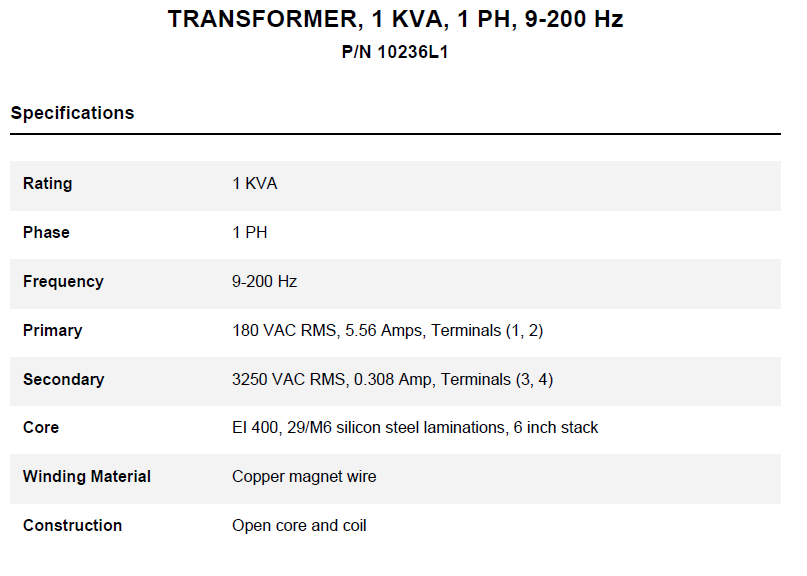

Specifications:
• Low Frequency Transformer, 1 KVA, 1 PH, 9 Hz to 200 Hz, P/N 10236L1
• Primary (1, 2): 180 VAC, 5.56 Amps
• Secondary (3, 4): 3250 VAC, 0.31 Amp
• Copper windings
• Primary connections are # 12 AWG, 600 V flex wire
• Secondary connections are # 18 AWG, 10 KV flex wire
• Open core and coil, 12” W x 12” H x 12” D approximately
• Estimated weight: 250 lbs. or TBD

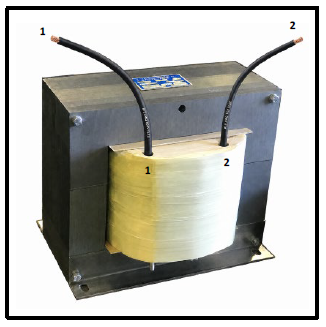

The photo of the transformer is shown below:

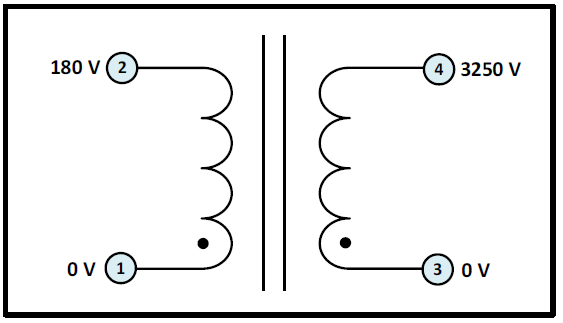

The schematic diagram of the transformer is shown below. Frequency range is from 9 Hz to 200 Hz.

See below for construction details:
