ISOLATION TRANSFORMER 5 KVA, 1 PH, 50/60 HZ, P/N 10082L
Our engineering team will conduct an inspection and design based on your requirements to provide you with a new custom transformer specifically engineered and manufactured by L/C Magnetics. High current transformers are specialized instruments crafted to precisely measure and convert elevated current levels, thereby enhancing monitoring and protection with in various electrical systems. We are pleased to present a special offer on our 5 KVA Isolation Transformer. Should you have different requirements, please do not hesitate to contact us.

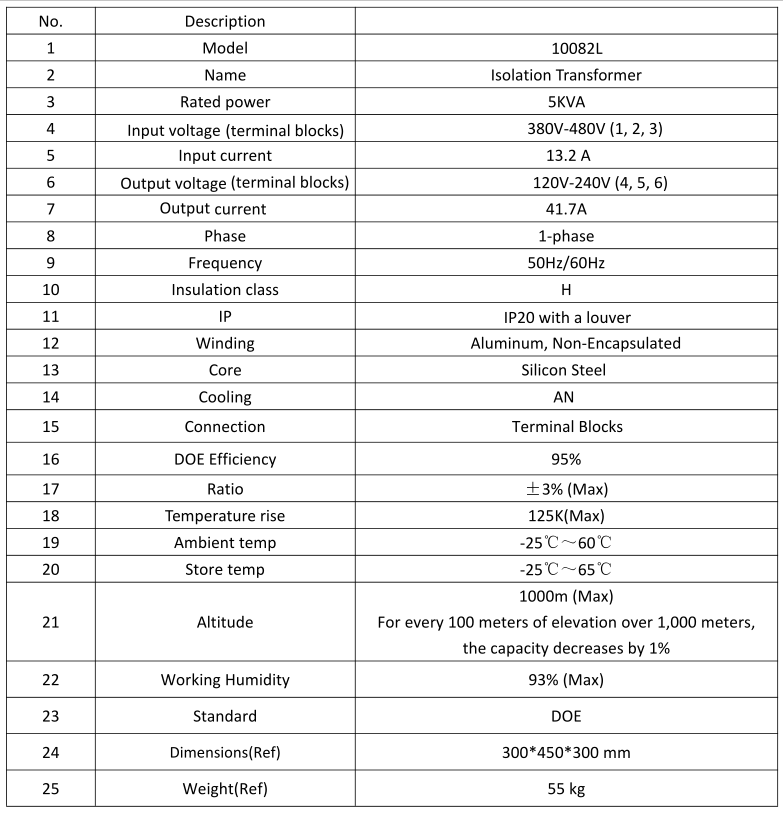

Specifications / Technical Parameters

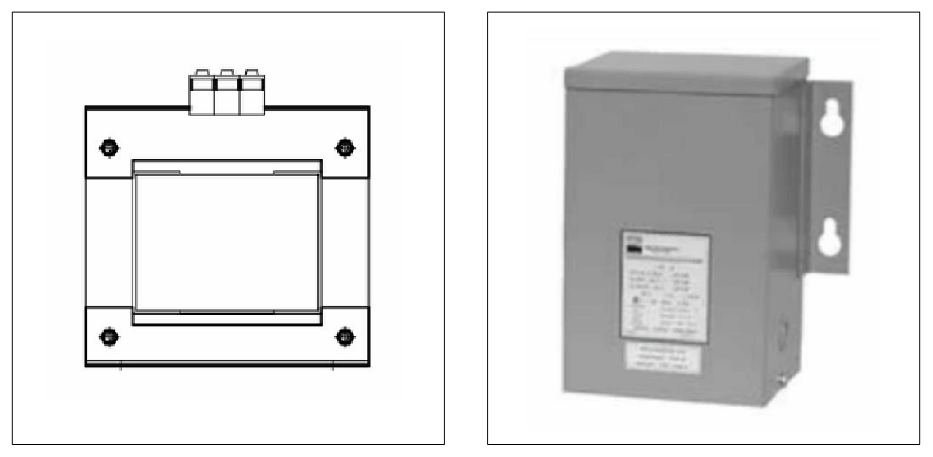

Drawings

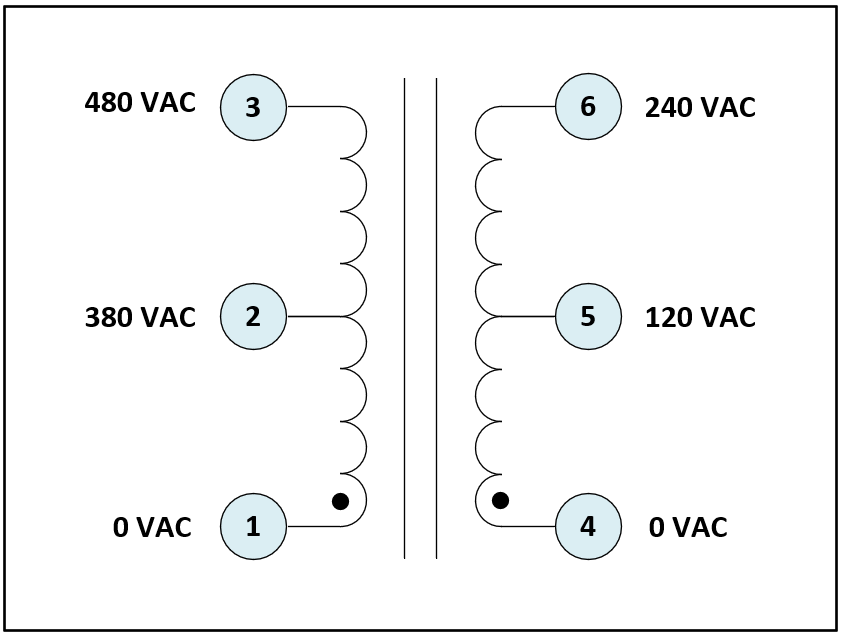

Schematic
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
