ISOLATION TRANSFORMER 400 KVA, 400 Hz, P/N 10055L3
Specifications:
- Isolation Transformer 400 KVA, 3 PH, 400 Hz, P/N 10055L3
- Input: 440 VAC L-L, 525 Amps, Delta
- Output: 440 VAC L-L, 525 Amps, Delta
- Copper Windings
- Insulation Class: H
- Cooling: AN/AF
- Indoor Enclosure: 52.0” W x 31.5” D x 67.0” H or TBD
- Weight: 2866 lbs or TBD
The schematic diagram is shown below:

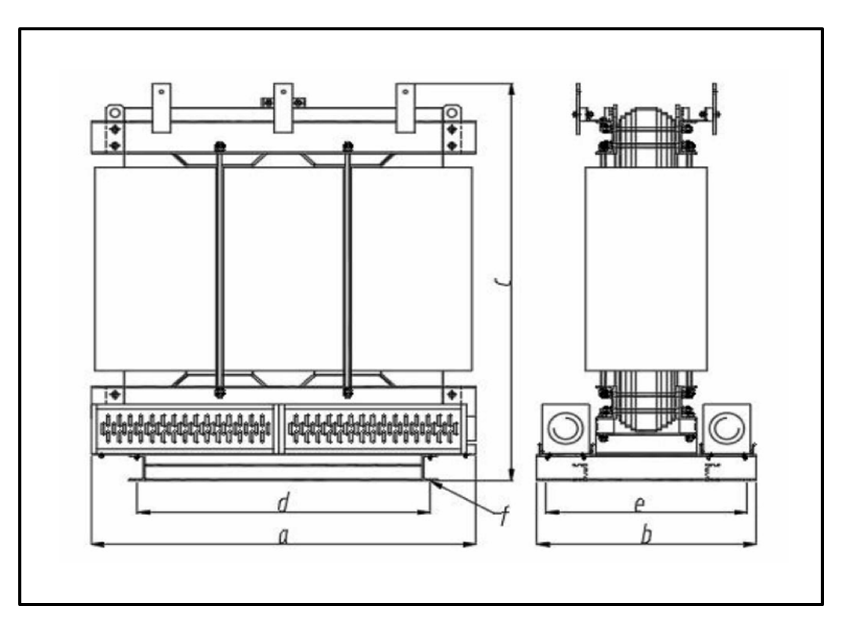

The diagram of the transformer is shown below:

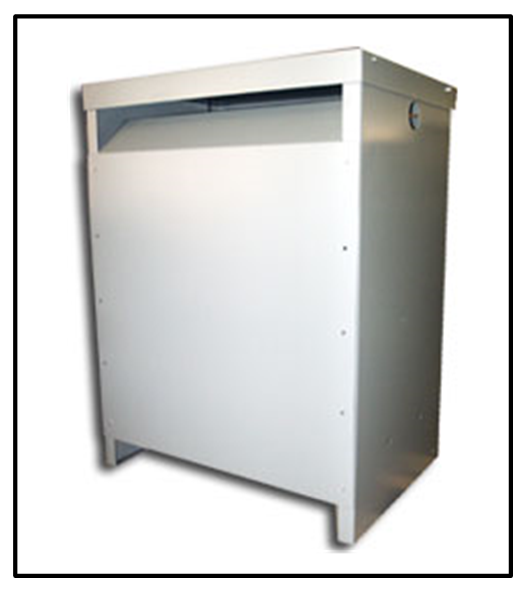

The photo of the indoor enclosure (52.0” W x 31.5” D x 67.0” H) is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
