ISOLATION TRANSFORMER 300 KVA, 400 Hz, P/N 10055L2
Specifications:
- Isolation Transformer 300 KVA, 3 PH, 400 Hz, P/N 10055L2
- Input: 200 VAC L-L, 115 VAC L-N, 866 Amps, Wye
- Output: 200 VAC L-L, 115 VAC L-N, 866 Amps, Wye
- Copper Windings
- Insulation Class: H
- Cooling: AN/AF
- Indoor Enclosure: 52” W x 30” D x 63” H or TBD
- Weight: 2500 lbs or TBD

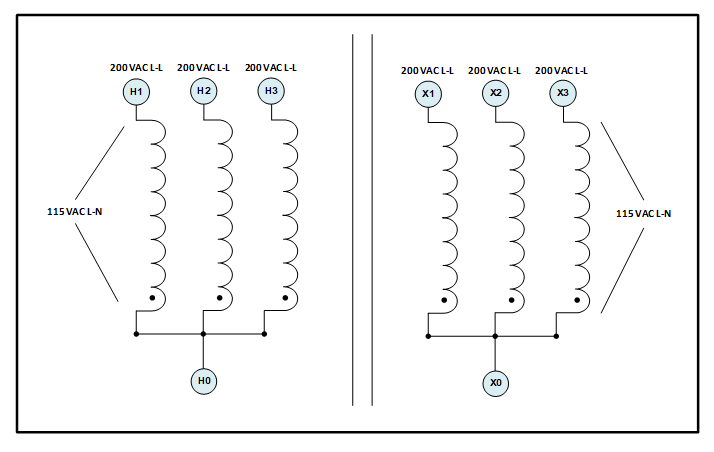

The schematic diagram is shown below:
The diagram of the transformer is shown below:
The photo of the indoor enclosure (52” W x 30” D x 63” H) is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
