ISOLATION TRANSFORMER 2.4 KVA, 400 Hz, P/N 10055L1
Specifications:
- Isolation Transformer 2.4 KVA, 1 PH, 400 Hz, P/N 10055L1
- Input: 115 VAC, 20.8 Amps
- Output: 208 VAC, 11.5 Amps
- Copper Windings
- Open Core and Coil
- Dimensions: 5.5” W x 5.5” D x 7.0” H or TBD
- Weight: 56 lbs or TBD

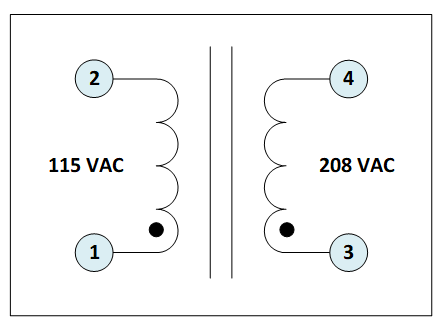

The schematic diagram is shown below:
