GAPPED INDUCTOR 500 uH, 300 Amps, 400 Hz
P/N 19026L

Specifications:

  • Gapped Inductor, P/N 19026L
  • L (1, 2) = 500 uH ± 25 %, 300 Amps
  • Frequency: 400 Hz
  • Ripple current is 15 Amps p-p at 8 KHz
  • Open core and coil, 15”H x 15”W x 16”D
  • Copper bus bars are 1 1/2” x 1/4” with one hole
  • Calculated temperature rise on core: 46º C
  • Calculated temperature rise on copper: 15º C
  • Overall temperature rise: 58°C
  • Copper winding construction
  • Weight: 375 lbs approximately

The photo of the gapped inductor is shown below:



Gapped Inductor, 500 uH, 300 Amps, 400 Hz, P/N 19026L

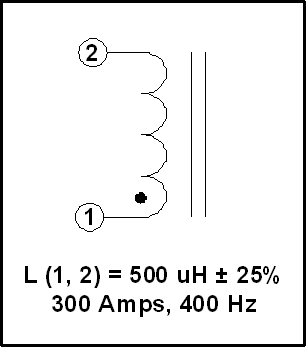

The schematic of the inductor is shown below:



Gapped Inductor, 500 uH, 300 Amps, 400 Hz, P/N 19026L Schematic Diagram



All our gapped inductors are custom built to order. To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
