Current Limiting Reactor 101 uH, 57 Amps Continuous
P/N 18786CLR

The customer application is shown below. The CLR (current limiting reactor) consists of three gapped inductors inside one enclosure. The input power is 480 VAC, 3 PH, 400 Hz. Circuit breakers are supplied by the customer. A 14.5 volts drop is observed at 480 amps continuous current.

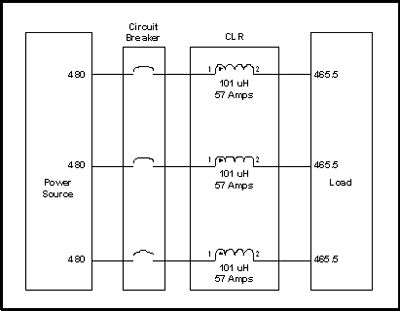

CLR, 57 AMPS CONTINUOUS, FAULT CURRENT 1900 AMPS , P/N 18786CLR Schematic Diagram



The Calculations of inductance value for 480 amps continuous and 1900 amps fault current are shown below:

Assuming 1900 Amps Fault Current, The Inductance Value is

  • V = 2 x pi x F x L x I (Fault Current)
  • L = 480 / (2 x pi x F x I (Fault Current))
  • L= 480 / (2 x 3.142 x 400 x 1900) = 101 uH

Voltage Drop Across The CLR At 57 Amps Continuous Is

  • V = 2 x pi x F x L x I (Continuous Current)
  • V = 2 x 3.142 x 400 x (101 x 10-6) x 57
  • V = 14.5 Volts

The voltage drop across the CLR at different current levels is shown in Table A:



Table A

Voltage Drop Across The CLR Current Thru The CLR
14.5 Volts 57 Amps
25.4 Volts 100 Amps
50.8 Volts 200 Amps
127 Volts 500 Amps
230.2 Volts 800 Amps
254 Volts 1000 Amps
381 Volts 1500 Amps
480 Volts 1900 Amps

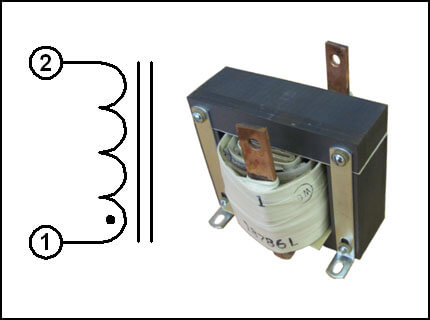

A photo of the inductor is shown below. Three inductors are required per system. Each inductor will be housed inside a separate enclosure:



CLR, 57 AMPS CONTINUOUS, FAULT CURRENT 1900 AMPS , P/N 18786CLR



Specifications:

  • Gapped Inductor, P/N 18786L
  • L (1, 2) = 101 uH ± 25 %, 57 Amps
  • Copper winding construction
  • Copper bus bar: 1/8” x 5/8” with one hole
  • RDC = 0.00155 ohms
  • Calculated core loss: 27.5 watts
  • Calculated copper loss: 5 watts
  • Temperature rise: 35°C
  • Indoor enclosure, 20”H x 16”W x 9”D

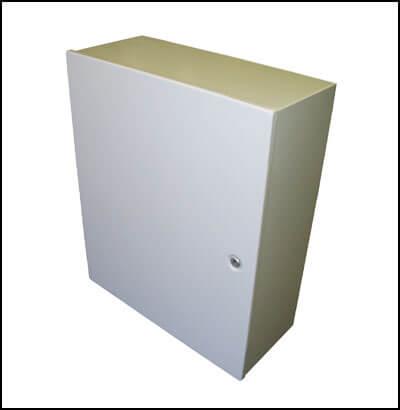

The CLR consists of three inductors. Each inductor is housed inside a separate indoor enclosure. The photo of the enclosure is shown below:



CLR, 57 AMPS CONTINUOUS, FAULT CURRENT 1900 AMPS , P/N 18786CLR



All our gapped inductors are custom built to order. To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
