Air Core Inductor 147 uH, 250 Amps
P/N 8159L1

Specification:

  • Air Core Inductor, P/N 8159L1
  • L (1, 2) = 147 uH ± 25 %, 250 Amps continuous
  • Fault current limit: 5000 Amps
  • Voltage available to the load will be reduced from 480 VAC L-L to 456 VAC L-L due to the CLR
  • Copper bus bars are 1″ x 1/4” thick
  • Copper winding construction
  • Three Air Core Inductors are required for one complete CLR system
  • Three Air Core Inductors is installed vertically in one stainless steel enclosure (70″H x 50″W x 50″D)
  • Estimated weight for three inductors in one enclosure: (TBD) lbs.

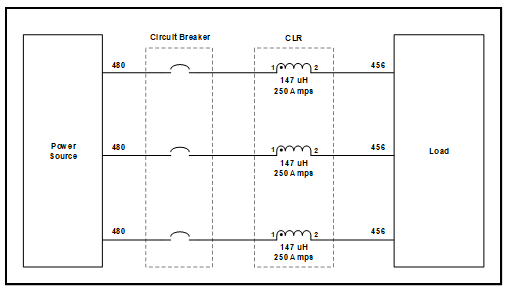

The customer application is shown below:



Aie Core Inductor, 147 uH, 250 AMPS, P/N 8159L1 Schematic Diagram

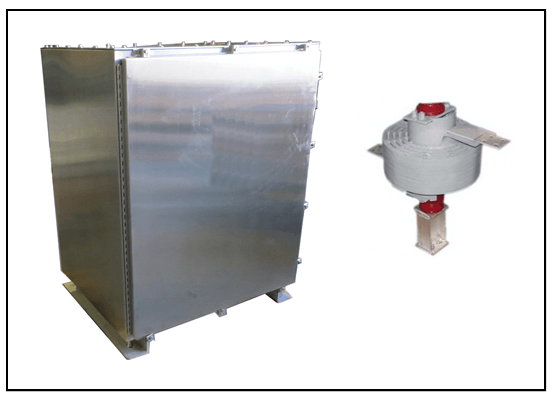

The photo of the inductor and the stainless steel enclosure is shown below. Three reactors are stacked one above the other in a vertical fashion.



Aie Core Inductor, 147 uH, 250 AMPS, P/N 8159L1



Three reactors are stacked one above the other in a vertical fashion as shown below:









Aie Core Inductor, 147 uH, 250 AMPS, P/N 8159L1 Schematic Diagram







All our CLR’s are custom built to order. To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
