CLR, 0.038 mH, 1200 Amp, 600 VAC, P/N TR-10A

Specifications:

    • CLR, P/N TR-10A
    • Inductance = 0.038 mH +/- 4%
    • Ohm = 0.014 Ohms
    • Continuous current: 1200 Amps
    • Current limit: 15.73 KA
    • Rated voltage: 600 VAC
    • Frequency: 60 Hz
    • BIL across coil: 45 kV
    • BIL across base insulator: 110 kV
    • Available fault current: 40.11 kA
    • Number of coil per phase: 1
    • Mounting (side-by-side or three phase stack): side-by-side
    • MC1 / MC2 above and below edge of coil: 4 / 16 inches
    • MC1 / MC2 from side to the edge of coil: 8 / 10 inches
    • Overall dimensions: 31″W x 31″L x 30″H
    • estimated weight: 175 lbs.

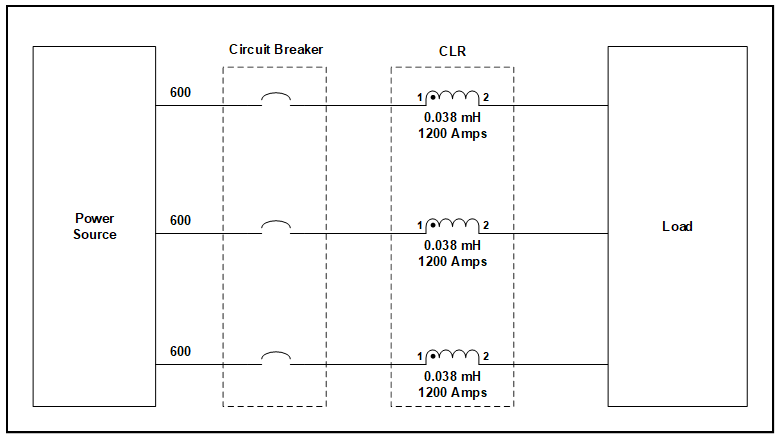

The customer application is shown below:





The details of the CLR are shown below. Three CLR’s are used for a three phase applications. Three CLR’s are installed side-by-side. Drawing belongs to Trench Limited.





All our CLR’s are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
