CLR, 0.01148 mH, 4000 Amps, 600 VAC, P/N TR-10B

Specifications:

  • CLR, P/N TR-10B
  • Inductance = 0.01148 mH +/- 4%
  • Ohm = 0.00432 Ohms
  • Continuous current: 4000 Amps
  • Current Limit: 30.77 kA
  • Rated voltage: 600 VAC
  • Frequency: 60 Hz
  • BIL across coil: 45 kV
  • BIL across base insulator: 110 kV
  • Available fault current: 78.46 kA
  • Number of coil per phase: 1
  • Mounting (side-by-side or three phase stack): side-by-side
  • MC1 / MC2 above and below edge of coil: 2 / 19 inches
  • MC1 / MC2 from side to the edge of coil: 10 / 14 inches
  • Overall dimensions: 54″W x 54″L x 43″H
  • estimated weight: 600 lbs.

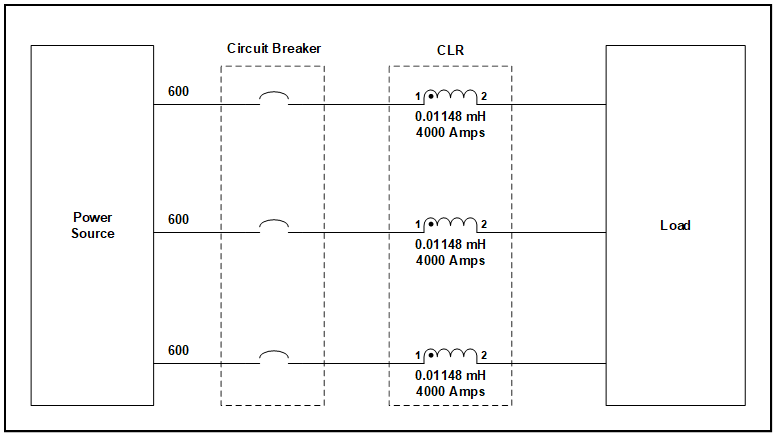

The customer application is shown below:

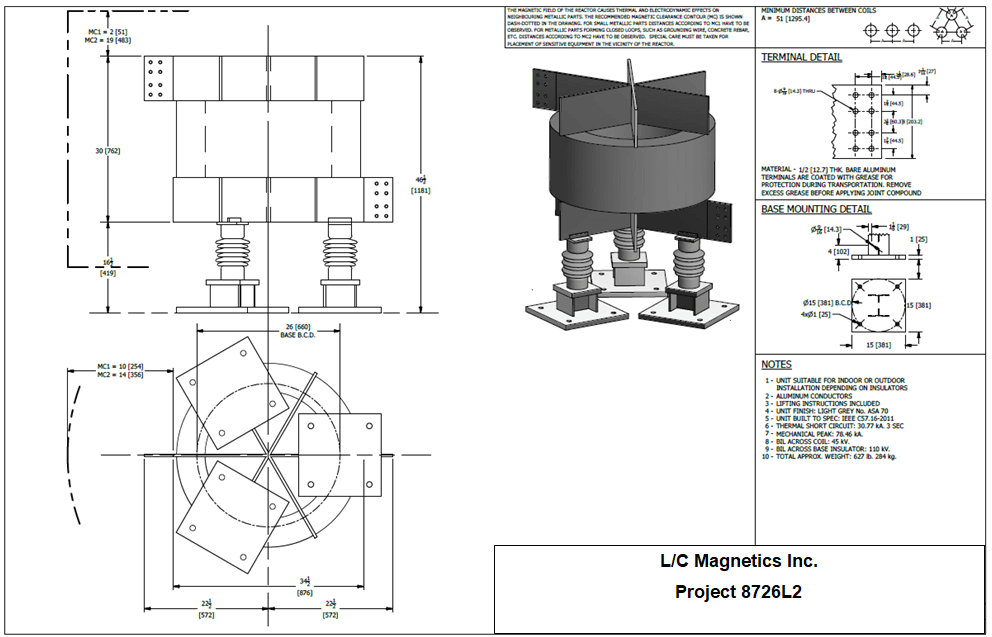

The details of the CLR are shown below. Three CLR’s are used for a three phase applications. Three CLR’s are installed side-by-side. Drawing belongs to Trench Limited.





All our CLR’s are custom built to order. To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
