400 Hz Gapped Inductor 5.7 mH, 10 Amps
P/N 19039L

Specifications:

    • Gapped Inductor, P/N 19039L
    • L (1, 2) = 5.7 mH ± 25%, 10 Amps RMS
    • Frequency: 400 Hz
    • Open core and coil: 5″H x 5″W x 5″D
    • Weight: 15 lbs approximately
    • Terminal connections are J lugs
    • Calculated temperature rise: 35°C
    • Copper winding construction

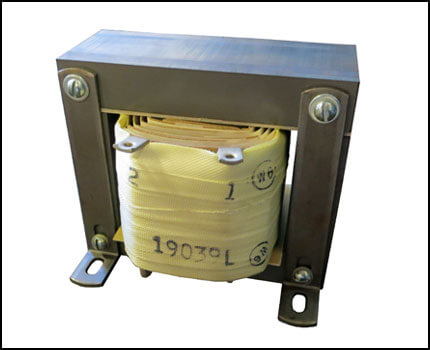

The photo of the gapped inductor is shown below:



GAPPED INDUCTOR, 5.7 mH, 10 Amps RMS, 400 Hz, P/N 19039L

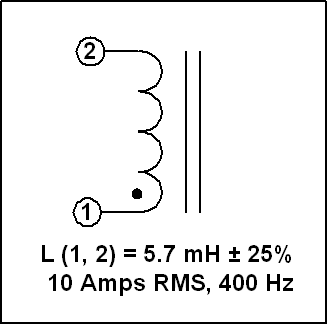

The schematic of the inductor is shown below:



GAPPED INDUCTOR, 5.7 mH, 10 Amps RMS, 400 Hz, P/N 19039L Schematic Diagram



All our inductors are custom build to order. For your specific requirements please call us at (714) 624-4740 or send us an e-mail at quote@lcmagnetics.com.
