400 Hz to 1500 Hz inductor 650 uH, 20 Amps
P/N 19062L

Specifications:

    • Gapped Inductor, P/N 19062L
    • L (1, 2) = 650 uH ± 25%, 20 Amps
    • Frequency: 400 Hz to 1500 hz
    • Copper bus bars are 1/8″ x 5/8″ with one hole
    • Copper winding construction
    • Open core & coil: 5″H x 5.5″W x 5.5″D
    • Calculated temperature rise: 41°C
    • Weight: 13 lbs approx.

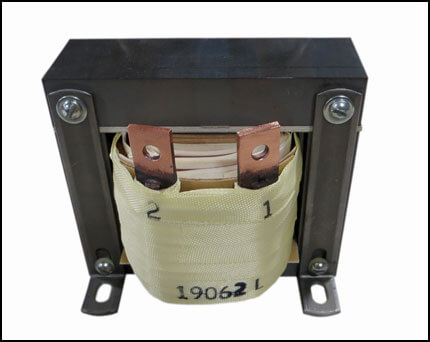

The photo of the gapped inductor is shown below:



400 HZ to 1500 HZ INDUCTOR, 650 uH, 20 Amps, P/N 19062L

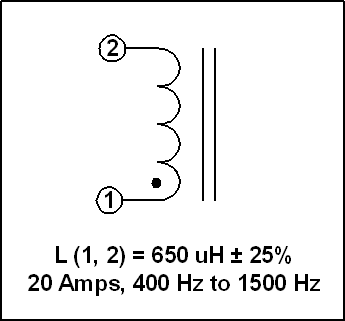

The schematic of the inductor is shown below:



400 HZ to 1500 HZ INDUCTOR, 650 uH, 20 Amps, P/N 19062L Schematic Diagram



All our Inductors are custom build to order. For your specific requirements please call us at (714) 624-4740 or send us an e-mail at quote@lcmagnetics.com.
