400 Hz Power Inductor 500 uH, 150 Amps
P/N 19025L

Specifications:

  • Gapped Inductor, P/N 19025L
  • L (1, 2) = 500 uH ± 25 %, 150 Amps
  • Frequency: 400 Hz
  • Ripple current is 7.5 Amps p-p at 8 kHz
  • Open core and coil, 12”H x 12”W x 9”D
  • Copper bus bars are 1” x 1/4” with one hole
  • Calculated temperature rise for core: 31°C
  • Calculated temperature rise for copper: 14°C
  • Overall temperature rise: 41°C
  • Copper winding construction
  • Weight: 125 lbs approximately

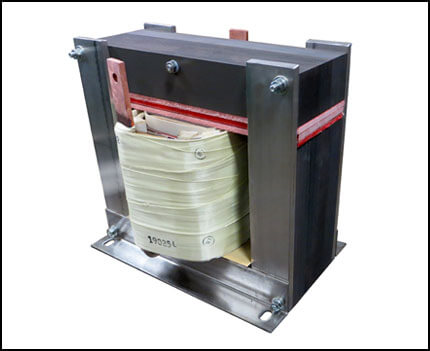

The photo of the gapped inductor is shown below:



400 HZ POWER INDUCTOR, 500 uH, 150 Amps, P/N 19025L

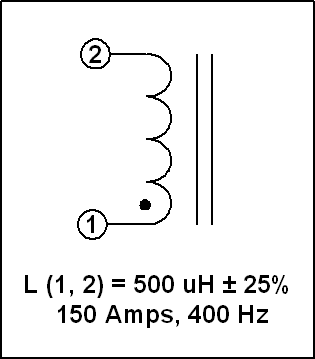

The schematic of the inductor is shown below:



400 HZ POWER INDUCTOR, 500 uH, 150 Amps, P/N 19025L Schematic Diagram



All our inductors are custom build to order. For your specific requirements please call us at (714) 624-4740 or send us an e-mail at quote@lcmagnetics.com.
