HIGH CURRENT TRANSFORMER 8 KVA, 1 PH, 60 HZ, P/N 19835

Specifications:

• High Current Transformer: 8 KVA, 1 PH, 60 Hz, P/N 19835
• Input: 208 VAC (1, 2, 3), 38.46 Amps
• Output: 5/10 VAC (4, 5), 800 Amps
• When 208 VAC is applied at (1, 2), output (4, 5) is 10 VAC, 800 Amps.
• When 208 VAC is applied at (1, 3), output (4, 5) is 5 VAC, 800 Amps.
• Dimensions: 13” H x 15” D x 12” W
• Estimated shipping weight: 200 lbs.

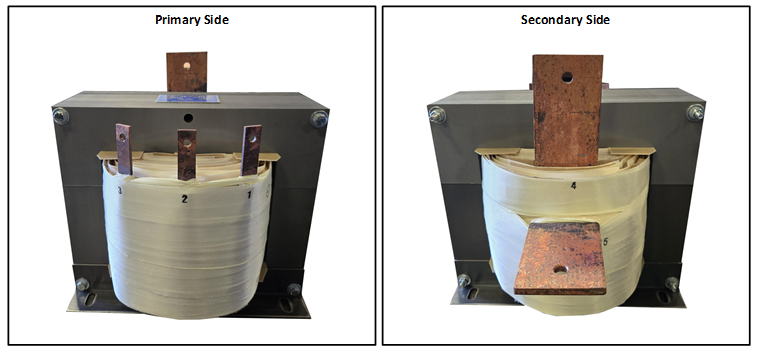

The photo of the transformer is shown below:

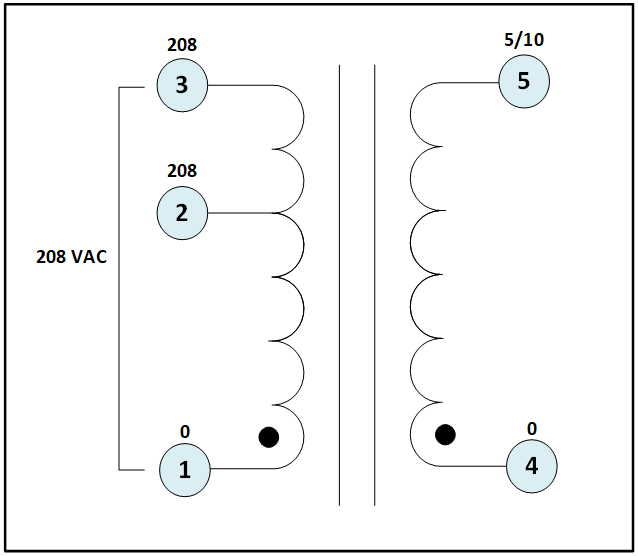

The schematic diagram is shown below:
