HIGH CURRENT TRANSFORMER 4 KVA, P/N 19082B
Specifications:
- Transformer: 4 KVA, 1 PH, 60 Hz, P/N 19082B
- Input: 208 VAC, 19.23 Amps (1, 2)
- Output: 10 VAC, 400 Amps (3, 4)
- Primary copper bus bars are 1/8” x 5/8” with one hole
- Secondary copper bus bars are 1 1/2” x 1/4” with one hole
- Dimensions: 12” W x 11” H x 11” D
- Copper windings
- Approvals: None
- Estimated weight: 135 lbs.

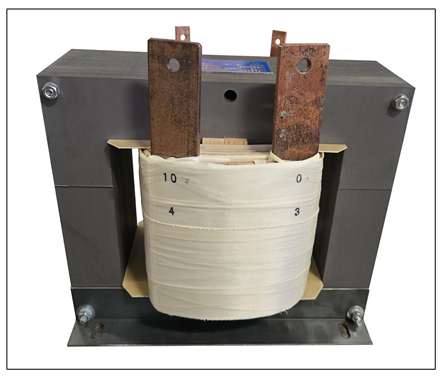

The photo of the transformer is shown below:

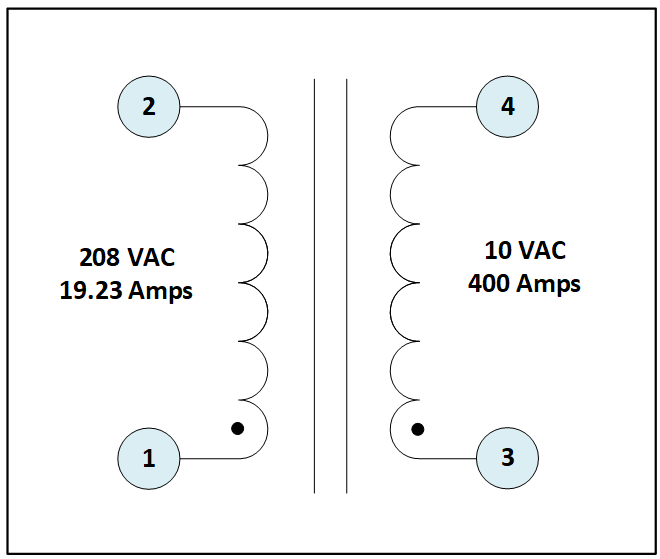

The schematic diagram is shown below:
