HIGH CURRENT TRANSFORMER 4 KVA

OUTPUT: 10 VAC, 400 AMPS, P/N 19855

Specifications:

Transformer 4 KVA, 1 PH, 60 Hz, P/N 19855
Primary: 208 VAC, 19.23 Amps
Secondary: 10 VAC, 400 Amps
Open Core & Coil, 9” W x 10” x 10”
Copper Windings
Weight: 80 lbs.

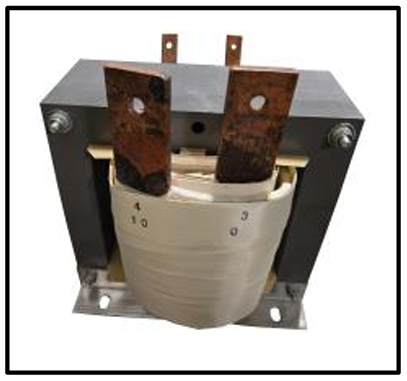

The photo of the transformer is shown below:

19855

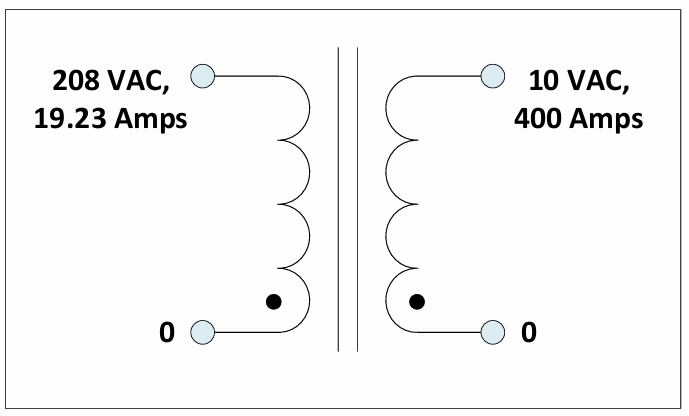

The schematic diagram is shown below:

19855 SCHEMATIC

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
