FERRITE CORE TRANSFORMER WITH U – FRAME 400 VA

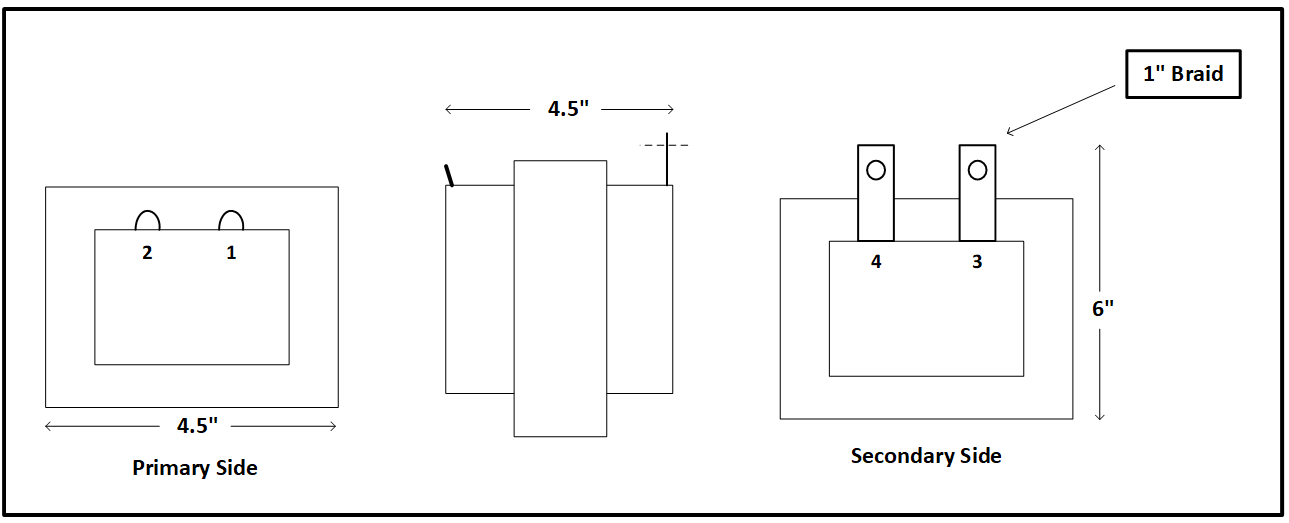

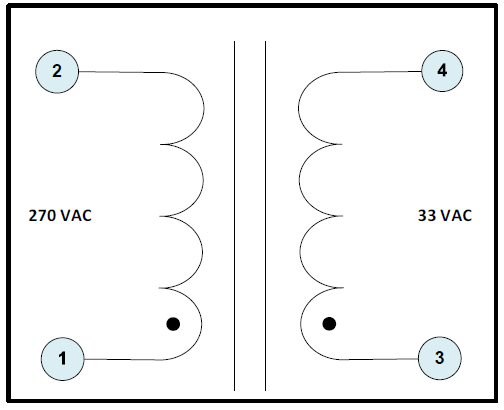

The 400 VA single-phase high-frequency transformer (P/N 10139L1) provides precise and efficient voltage conversion for advanced electronic applications operating at 10 kHz. With a 270 VAC primary and 33 VAC secondary, it delivers 1.49 amps on the primary side and 12.12 amps on the secondary, while its 8.18:1 turns ratio ensures stable performance under varying loads. The ferrite U-frame core minimizes eddy current and hysteresis losses, making it ideal for high-speed switching applications such as high-frequency inverters, induction heating systems, and compact power supplies. Additionally, high-quality copper windings enhance conductivity and thermal performance, and the open-core design measures approximately 4.5″ W x 4.5″ D x 6.0″ H, allowing flexible integration into custom installations.
