FERRITE CORE TRANSFORMER 13.36 KVA, 1 PH, 3300 HZ, P/N 19618C

Specifications:

Ferrite Core Transformer, 13.36 KVA, 1 PH, P/N 19618C
Center Frequency: 3300 Hz, Range: 1000 Hz to 5000 Hz
Primary (1, 2) : 212 VAC, 63 Amps
Secondary (3, 4): 82 VAC, 162 Amps
Copper Windings. Approvals: None
Primary copper bus bars are 1/8” x 5/8” with one hole
Secondary copper bus bars are 1/4” x 1” with one hole
Mounting feet: None, Unimpregnated
Open core & coil: 8.125” H x 9.00” W x 7.50” D. Estimated weight: 26 lbs.

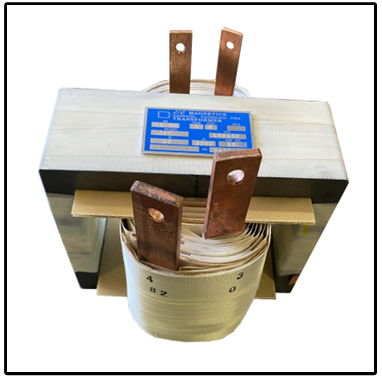

The photo of the transformer is shown below:

19618C

The schematic diagram is shown below:

Screenshot 2025-07-24 122212

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
