DRY TYPE TRANSFORMER, 24 KVA, 1 PH, 60 Hz

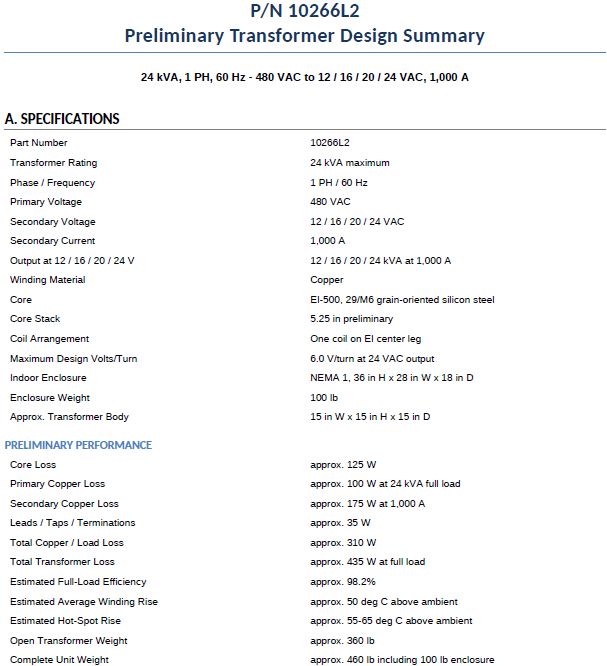

Specifications:

• Dry Type Transformer, 24 KVA, 1 PH, 60 Hz, P/N 10266L2
• Primary: 480 VAC
• Secondary: 12 to 48 VAC, 1000 Amps
• Copper windings
• Dual winding construction
• NEMA 3R Enclosure: 36” H x 28” W x 18” D or TBD
• Estimated weight: 450 lbs.

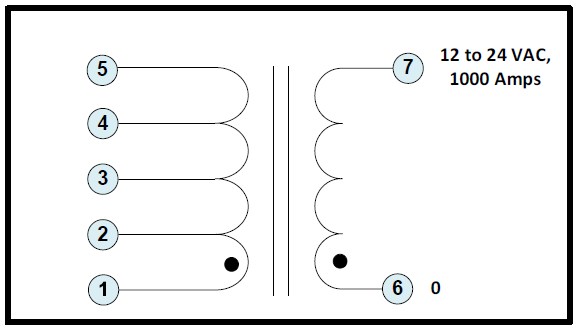

The schematic diagram is shown below:

The dimensions of the Dry Type Transformer are shown below:

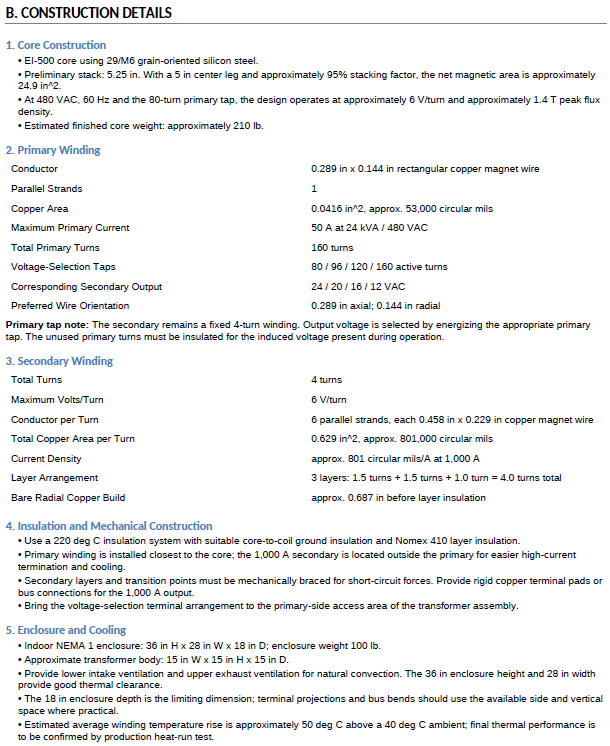

See preliminary construction details below:
