DISTRIBUTION TRANSFORMER 500 KVA

34400 P, 208Y/120, P/N 10059L2

Our engineering team will conduct an inspection and design based on your requirements to provide you with a new custom transformer specifically engineered and manufactured by L/C Magnetics. High current transformers are specialized instruments crafted to precisely measure and convert elevated current levels, thereby enhancing monitoring and protection with in various electrical systems. We are pleased to present a special offer on our Distribution Transformers. Should you have different requirements, please do not hesitate to contact us.

Specification:

• Distribution Transformer 500 KVA, 3 PH, 60 Hz, P/N 10059L2
• Primary: 34400 VAC, Delta
• Secondary: 208 VAC L-L, 120 VAC L-N, Wye
• Copper Windings

For additional information, see details below:

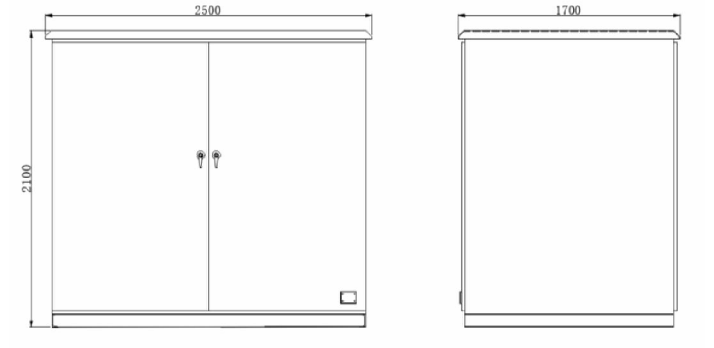

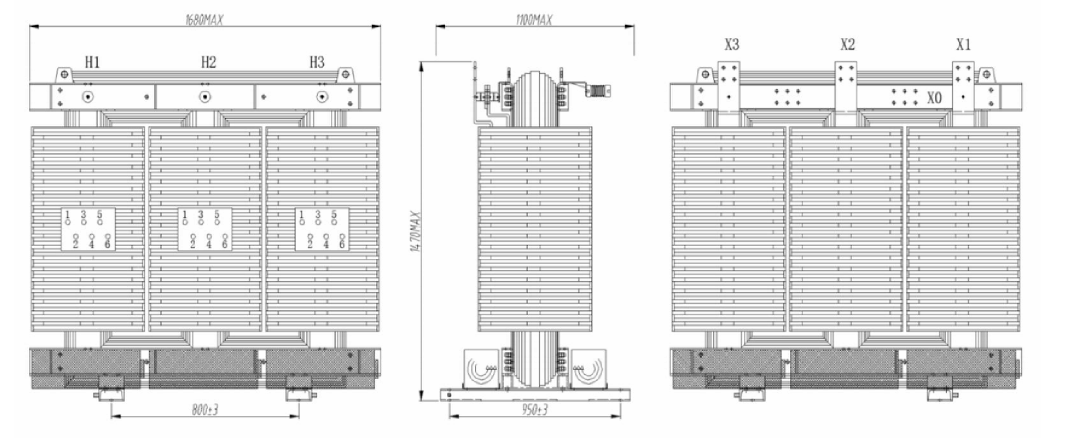

The configurations and dimensions of the transformer and enclosure is shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
