SCOTT T MULTI TAPPED TRANSFORMER 300 KVA

(SECONDARY TAPS ARE ON THE PRIMARY SIDE)

Specifications:

• Scott T Multi Tapped Transformer 300 KVA, 3 PH, 60 Hz
• Primary: 460 VAC L-L with secondary taps are on the primary side
• Primary 460 VAC L-L: H11 to H16, H21 to H26, and H31 to H36 are 400 Amps bus bars.
• Example: H11, H21, and H31 is one primary 460 VAC L-L, secondary output is then 20 VAC L-L.
• Secondary: 20/22/24/25/27/28 VAC L-L, 7500 Amps Max
• X1 represents five terminals (1500 Amps each) to offer 7500 Amps capability. This applies to X2, X3, and X4.
• Copper Windings
• Dimensions: TBD
• Weight: 2500 kg or TBD

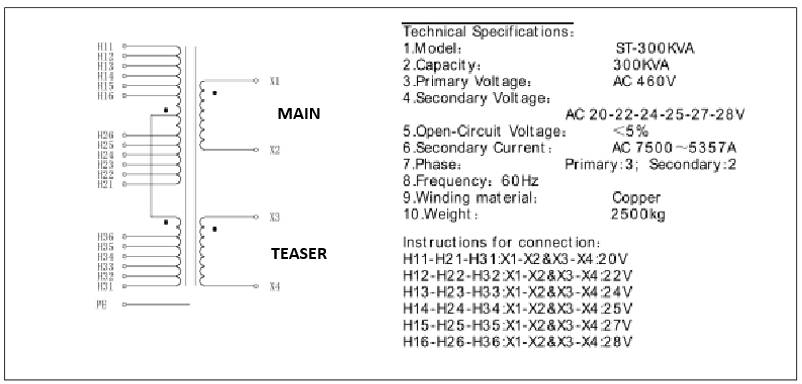

The schematic of the transformer is shown below:

The photos and details of the transformer is shown below:

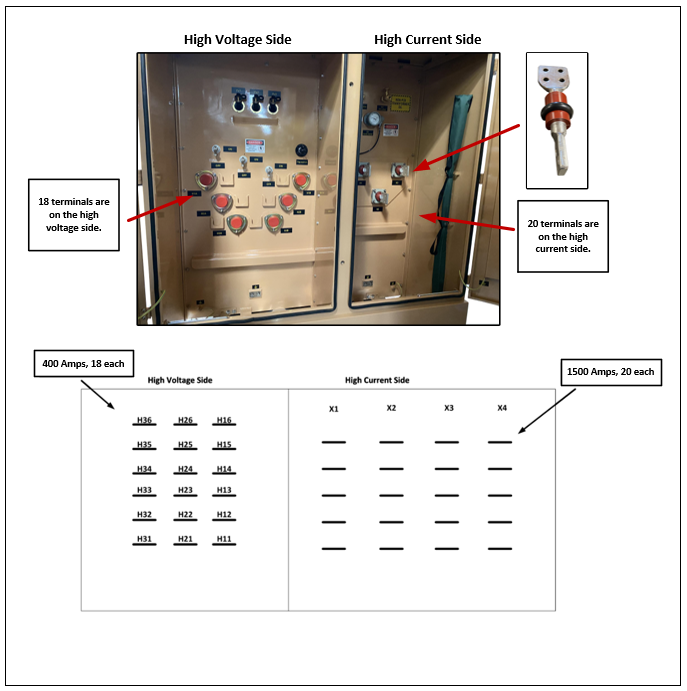

High Voltage and High Current Compartment with Multiple Terminals

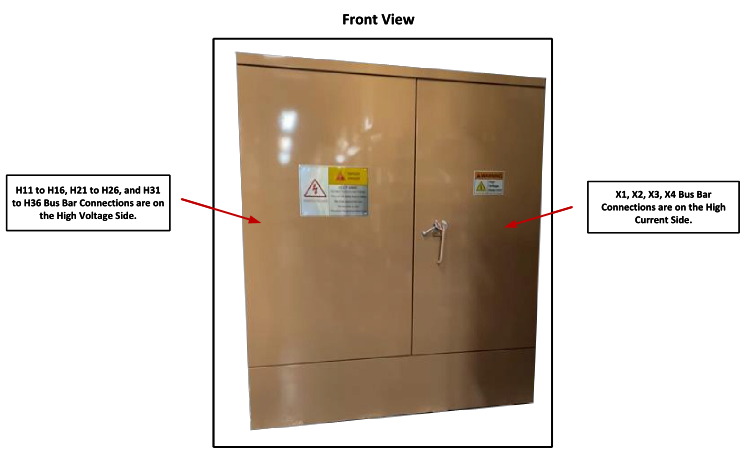

Various Views of the Transformer

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com
