OIL FILLED MULTI TAPPED TRANSFORMER 150 KVA

(SECONDARY TAPS ARE ON THE PRIMARY SIDE)

Specifications:

Oil Filled Multi Tapped Transformer 150 KVA, 3 PH, 60 Hz
Primary: 480 VAC L-L with secondary taps are on the primary side
Primary 480 VAC L-L: H11 to H19, H21 to H29, and H31 to H39 are 200 Amps bus bars.
Example: H11, H21, and H31 is one primary 480 VAC L-L, secondary output is then 10 VAC L-L.
Secondary: 10/11/12/13/14/15/16/17/18 VAC L-L
X1, X2, and X3 are three terminals each rated for 1700 Amps, so that each X1, X2, and X3 is rated for 5100 Amps.
Copper Windings
Dimensions: TBD
Weight: 1000 kg or TBD

The schematic of the transformer is shown below. Secondary taps are on the primary side:

oil filled 150 kva schematic

The photos and details of the oil filled transformer is shown below:

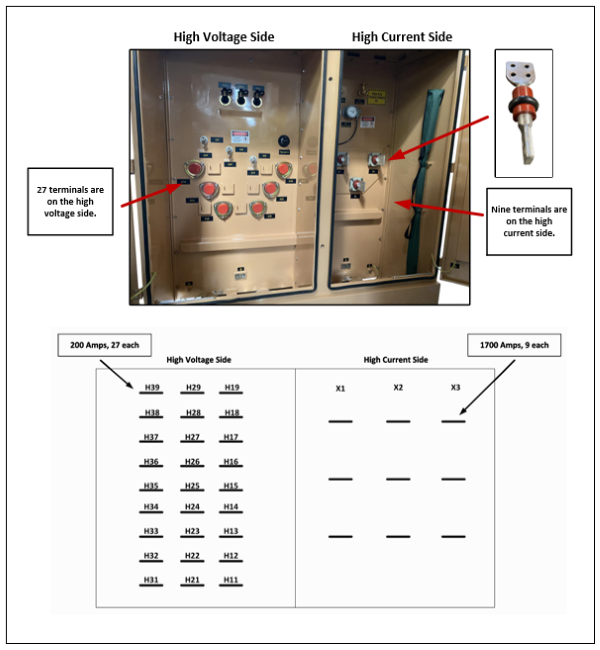

High Voltage and High Current Compartment with Multiple Terminals

Screenshot 2025-10-02 194138

Various Views of the Transformer

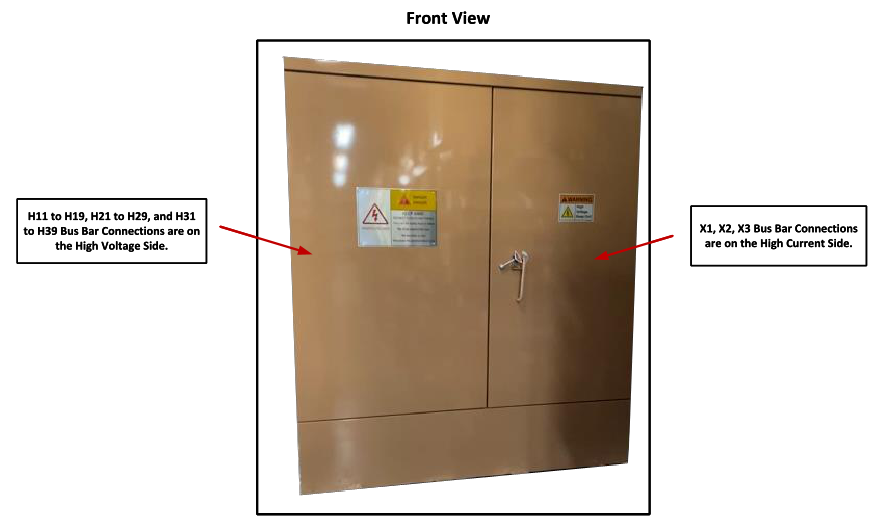

front view

side view

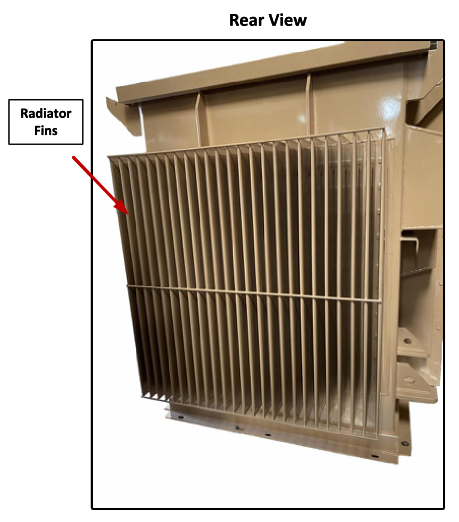

rear view

To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com
